FAN8620B

Features: Spindle Motor Driver·Soft commutation·Spindle brake after retract·Adjustable brake delay time·1.5A max. current power driver·Low output saturation voltage: 1V typical @1.2A·PWM decoder & filter for soft commutation·The external circuit (ASIC) based start-up, commutation and motor spe...

product image

FAN8620B Picture
See larger image
SeekIC No. : 004340535 Detail

FAN8620B: Features: Spindle Motor Driver·Soft commutation·Spindle brake after retract·Adjustable brake delay time·1.5A max. current power driver·Low output saturation voltage: 1V typical @1.2A·PWM decoder &am...

FAN8620B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8620B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Spindle Motor Driver
·Soft commutation
·Spindle brake after retract
·Adjustable brake delay time
·1.5A max. current power driver
·Low output saturation voltage: 1V typical @1.2A
·PWM decoder & filter for soft commutation
·The external circuit (ASIC) based start-up, commutation  and motor speed control
Voice Coil Motor Driver
·Trimmed low offset current
·1.2A max. current power driver
·Gain selection and adjustable gain
·Automatic power failure retract function
·Class AB linear amplifier with no dead zone
·Low output saturation voltage: 0.8V typical @1.0A
·Internal full bridge with VPNP (Vertical PNP) & NPN transistors
Power Monitoring
·Power on reset with delay
·Hysteresis on both power comparators
·Over temperature & over current shut down
·5V and 12V power monitor threshold accuracy ±2 Others
·Can be used with 5Volt and 3.3Volt control  signals(CNTL1,CNTL2 & CNTL3) for ASIC Interface Package
·48QFPH (48 pin quad flat package heat-sink)

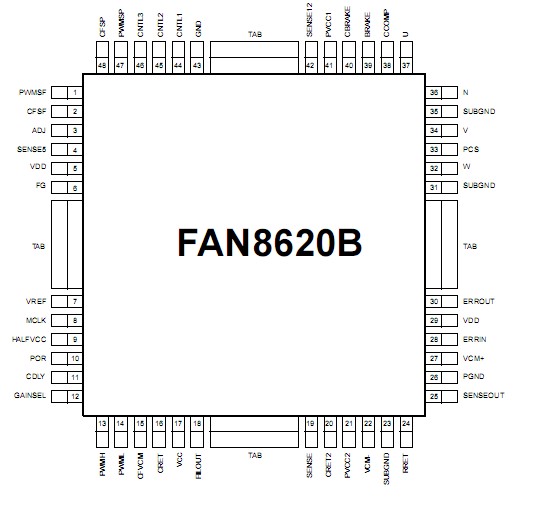

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Maximum signal block supply voltage for 5V line
VDDMAX
6.0
V
Maximum signal block supply voltage for 12V line
VCCMAX
15.0
V
Maximum power block supply voltage for 12V line
PVCCMAX
15.0
V
Maximum output current of Spindle motor
ISOMAX
2.0
A
Maximum output current of VCM
IVOMAX
1.2
A
Power dissipation
PD
3.0 note
W
Storage temperature
TSTG
-55~125
Maximum junction temperature
TJMAX
150
Operating ambient temperature
TA
0~70
Notes:1.Power dissipation is reduced 16mW / for using above Ta=25.
          2.Do not exceed Pd and SOA(Safe Operating Area).


Description

The FAN8620B is an ASIC combination chip, designed for the HDD application, it includes the following functions: spindle motor drive, voice coil motor drive, retract and  power management.

To drive and control the spindle, the external ASIC provides
the appropriate control signals (Start up, commutation, speed control) to the FAN8620B. The spindle motor condition is  monitored by the FG output and the motor speed control is  accomplished via the PWMSP input. The ASIC controls the  voice coil motor current via PWMH and PWML inputs and  the power management circuit always monitors the power  supply voltages.
