FAN8705

Features: Built in power save functionBuilt in UVLO function.Constant current drive for shutter.Low Ron resistance (1.1 Ω @ 0.2A)Constant voltage drive for CH1~CH3.Pseudo sinewave control for AF.Three input 2-2 phase control for AFBuilt in short circuit protection.ApplicationChannel 1 and Ch...

product image

FAN8705 Picture
See larger image
SeekIC No. : 004340538 Detail

FAN8705: Features: Built in power save functionBuilt in UVLO function.Constant current drive for shutter.Low Ron resistance (1.1 Ω @ 0.2A)Constant voltage drive for CH1~CH3.Pseudo sinewave control for ...

FAN8705 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8705
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Built in power save function
Built in UVLO function.
Constant current drive for shutter.
Low Ron resistance (1.1 Ω @ 0.2A)
Constant voltage drive for CH1~CH3.
Pseudo sinewave control for AF.
Three input 2-2 phase control for AF
Built in short circuit protection.


Application

Channel 1 and Channel 2
CH1 and CH2 are constant voltage driver. The output voltage can be calculated by following equations.


Pinout

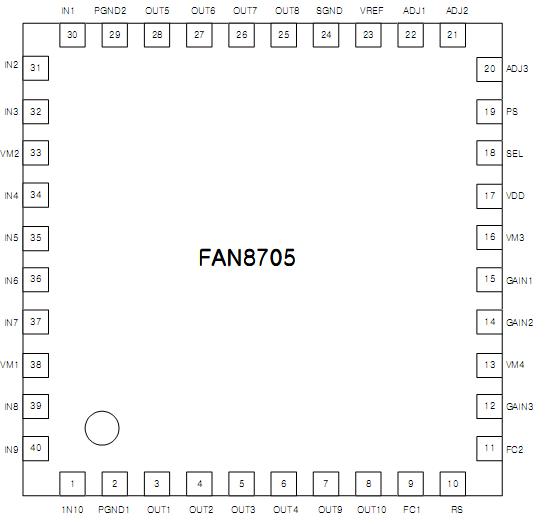

Connection Diagram


Specifications

Parameter     Symbol   Value Unit
Maximum power supply voltage VDDMAX,VMMAX    5.5   V
Thermal resistance      Rja 100/52 /W
Maximum power dissipation      PDMAX 1.25/2.4   W
Maximum output voltage      VOMAX    6.5    V
Maximum output current      IOMAX    0.8    A
Operating temperature      TOPR −25 ~ 85
Storage temperature      TSTG −55 ~ 150






Description

The FAN8705 is a DSC lens motor driver and it's consist of con-stant current and constant voltage drive blocks suitable for shut-ter, single iris,auto-focus and zoom motor drive.
