FC940LVB

Clock Drivers & Distribution 1-to-8 Clock Dis Dev

product image

FC940LVB Picture
See larger image
SeekIC No. : 00314422 Detail

FC940LVB: Clock Drivers & Distribution 1-to-8 Clock Dis Dev

FC940LVB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FC940LVB
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Output Logic Level : LVCMOS, LVTTL Supply Voltage - Max : 3.465 V
Supply Voltage - Min : 3.135 V Maximum Operating Temperature : + 70 C
Package / Case : TQFP-32

Description

Packaging :
Supply Voltage - Max : 3.465 V
Supply Voltage - Min : 3.135 V
Maximum Operating Temperature : + 70 C
Package / Case : TQFP-32
Output Logic Level : LVCMOS, LVTTL


Features:

·  Selectable Differential PECL or LVTTL/CMOS inputs
·  2.5V/3.3V output VCC supply operation
·  Typical propagation delays 2.5 ns
·  Part-to-Part skew < 900 ps
·  Typical Pin-to-Pin skew 200 ps
·  Ability to drive 50W series or parallel terminated transmission lines
·  Latchup performance exceeds 300 mA
·  ESD performance:
  Human body model > 2000V
  Machine model > 200V
·  Pin compatible to MPC940L
·  32 pin TQFP package


Pinout

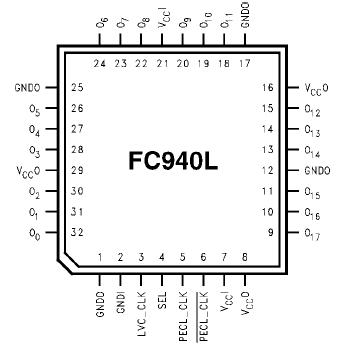

Connection Diagram


Specifications

Supply Voltage (VCC)...................................... -0.5V to +4.6V
DC Input Voltage (VI) .....................................-0.5V to +4.6V
Output Voltage (VO) (Note 2)................ -0.5V to VCC + 0.5V
DC Input Diode Current (IIK)
VI < 0V...................................................................... -50 mA
DC Output Diode Current (IOK)
VO < 0V...................................................................... -50 mA
VO > VCC ...................................................................+50 mA
DC Output Source/Sink Current (IO) ..........................±50 mA
DC VCC or Ground Current per Supply Pin
(ICC or Ground) ........................................................±100 mA
Storage Temperature Range (TSTG) ...........-65°C to + 150°C
Ambient Temperature Under Bias (TA) .............0°C to + 70°C
Case Temperature Under Bias (TC) ...............0°C to + 110°C


Description

The FC940L is a 1 to 18 low voltage clock fanout buffer. The device allows for the selection of either differential PECL or LVTTL/CMOS input levels. The 18 outputs are compatible with LVCMOS or LVTTL technology and are capable of driving 50W series or parallel terminated lines. The device has a minimal propagation delay and features low part-to-part and pin-to-pin skews. The outputs of the device are designed to operate at either 2.5V or 3.3V VCC. The output transistors have a 20W (30W) impedance at 3.3V (2.5V) VCC. The input and core circuitry operate at 3.3V.

The FC940L is fabricated in a high performance BiCMOS Process.
