FCT138T2

Features: • Function, pinout, and drive compatible with FCT and F logic• FCT-C speed at 5.0 ns max. (Com'l),FCT-A speed at 5.8 ns max. (Com'l)• Reduced VOH (typically = 3.3V) versions of equivalent FCT functions• Edge-rate control circuitry for significantly improved noise ...

product image

FCT138T2 Picture
SeekIC No. : 004340928 Detail

FCT138T2: Features: • Function, pinout, and drive compatible with FCT and F logic• FCT-C speed at 5.0 ns max. (Com'l),FCT-A speed at 5.8 ns max. (Com'l)• Reduced VOH (typically = 3.3V) versi...

floor Price/Ceiling Price

Part Number:
FCT138T2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Function, pinout, and drive compatible with FCT and F logic
• FCT-C speed at 5.0 ns max. (Com'l),FCT-A speed at 5.8 ns max. (Com'l)
• Reduced VOH (typically = 3.3V) versions of equivalent FCT functions
• Edge-rate control circuitry for significantly improved noise characteristics
• Power-off disable feature
• ESD > 2000V
• Matched rise and fall times
• Fully compatible with TTL input and output logic levels
• Extended commercial range of -40°C to +85°C
• Sink current 64 mA (Com'l),32 mA (Mil) Source current 32 mA (Com'l),12 mA (Mil)
• Dual 1-of-8 decoder with enables



Pinout

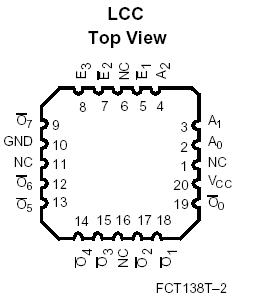

  Connection Diagram


Specifications

Storage Temperature ................................65°C to +150°C
Ambient Temperature with
Power Applied............................................65°C to +135°C
Supply Voltage to Ground Potential ............... 0.5V to +7.0V
DC Input Voltage............................................ 0.5V to +7.0V
DC Output Voltage......................................... 0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin)..........120 mA
Power Dissipation.......................................................... 0.5W
Static Discharge Voltage ........................................... >2001V



Description

The FCT138T is a 1-of-8 decoder. The FCT138T accepts three binary weighted inputs (A0, A1, A2) and, when enabled,provides eight mutually exclusive active LOW outputs (O0O7). The FCT138T features three enable inputs, two active LOW ((E1 , E2 ) and one active HIGH (E3 ).
All inputs will be HIGH unlessE1 and E2are LOW and E3 HIGH. This multiple enable function allows easy parallel expansion of the device to a 1-of-32 (5 lines to 32 lines) decoder with just four FCT138T devices and one inverter.
The outputs are designed with a power-off disable feature allow for live insertion of boards.
