FDB14AN06LA0
-
Suppliers
DataSheet
General Description
FDB14AN06LA0 Maximum Ratings
| Symbol | Parameter | Ratings | Units |
| VDSS |
Drain to Source Voltage | 60 | V |
| VGS |
Gate to Source Voltage |
±20 |
V |
| ID |
Drain Current Continuous (TC = 25, VGS = 10V) |
67 | A |
| Continuous (TC = 25, VGS = 5V) |
60 | A | |
| Continuous (TA = 25, VGS = 5V, RJA = 43/W) | 10 | A | |
| Pulsed | Figure 4 | A | |
| EAS |
Single Pulse Avalanche Energy (Note 1) | 46 | mJ |
| PD |
Power dissipation | 125 | W |
Derate above 25 |
0.83 |
W/ | |
| TJ , TSTG |
Operating and Storage Temperature | -55 to 175 |
FDB14AN06LA0 Features
*rDS(ON) = 12.8m (Typ.), VGS = 5V, ID = 60A
*Qg (tot) = 24nC (Typ.), VGS = 5V
* Low Miller Charge
*Low QRR Body Diode
* UIS Capability (Single Pulse and Repetitive Pulse)
* Qualified to AEC Q101
Formerly developmental type 83557
*Qg (tot) = 24nC (Typ.), VGS = 5V
* Low Miller Charge
*Low QRR Body Diode
* UIS Capability (Single Pulse and Repetitive Pulse)
* Qualified to AEC Q101
Formerly developmental type 83557
FDB14AN06LA0 Typical Application
* Motor / Body Load Control
* ABS Systems
* Powertrain Management
* Injection Systems
* DC-DC converters and Off-line UPS
* Distributed Power Architectures and VRMs
* Primary Switch for 12V and 24V systems
* ABS Systems
* Powertrain Management
* Injection Systems
* DC-DC converters and Off-line UPS
* Distributed Power Architectures and VRMs
* Primary Switch for 12V and 24V systems
FDB14AN06LA0
PDF/DataSheet Download
- Datasheet: FDB14AN06LA0
- File Size: 256037 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
- ·FDB035AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 60V, 80A, 3.5mз
- 242063 KB
- ·FDB045AN08
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel UltraFET Trench MOSFET 75V, 80A, 4.5mз
- 246234 KB
- ·FDB045AN08A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel UltraFET Trench MOSFET 75V, 80A, 4.5mз
- 246234 KB
- ·FDB050AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET
- 577561 KB
- ·FDB060AN08A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 75V, 80A, 6.0mз
- 258727 KB
- ·FDB070AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 60V, 80A, 7m
- 614008 KB
- ·FDB10AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 60V, 75A, 10.5mз
- 271594 KB
- ·FDB13AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 60V, 62A, 13.5mohm
- 307282 KB
FDB14AN06LA0 Relative Products
FDB13AN06A0
MOSFET N-CH 60V 62A TO-263AB

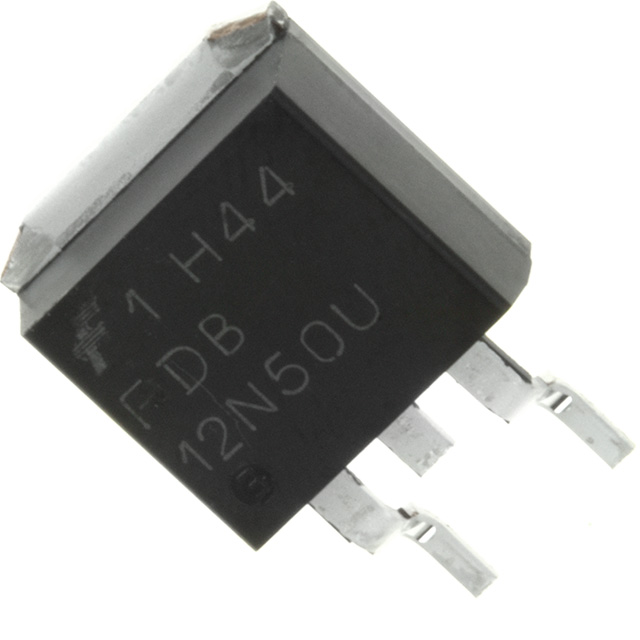

FDB12N50UTM_WS
MOSFET N-CH 500V 10A D2PAK
FDB12N50TM
MOSFET N-CH 500V 11.5A D2PAK

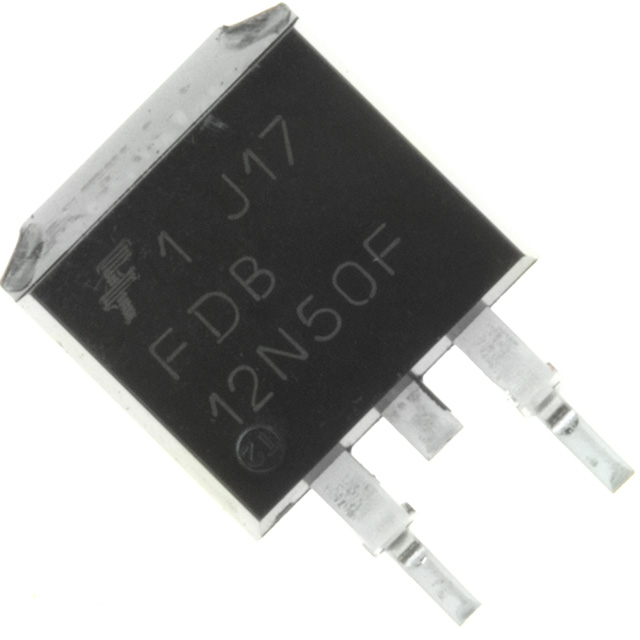

FDB12N50FTM_WS
