MFG:FAIRC Package Cooled:TO-263(D2PAK) D/C:09+
Part Number: FDB20AN06A0
MFG: FAIRC
Package Cooled: TO-263(D2PAK)
D/C: 09+
- Table of contents:
FDB20AN06A0
-
Suppliers
DataSheet
General Description
FDB20AN06A0 Maximum Ratings
|
Symbol |
Parameter |
Ratings |
Units |
| VDSS | Drain to Source Voltage |
60 |
V |
| VGS | Gate to Source Voltage |
±20 |
V |
| ID | Drain Current Continuous (TC=25, VGS = 10V) |
45 |
A |
| Continuous (TC = 25, VGS = 10V, RJA = 43/W) |
32 |
A | |
| Continuous (Tamb = 25, VGS = 10V, RJA = 43/W) |
9 |
A | |
| Pulsed |
Figure 4 |
A | |
| EAS | Single Pulse Avalanche Energy (Note 1) |
50 |
mJ |
| PD | Power dissipation |
90 |
W |
| Derate above 25 |
0.60 |
W/ | |
| TJ, TSTG | Operating and Storage Temperature |
-55 to 175 |
FDB20AN06A0 Features
• rDS(ON) = 17mΩ (Typ.), VGS = 10V, ID = 45A
• Qg(tot) = 15nC (Typ.), VGS = 10V
• Low Miller Charge
• Low QRR Body Diode
• UIS Capability (Single Pulse and Repetitive Pulse)
• Qualified to AEC Q101
• Qg(tot) = 15nC (Typ.), VGS = 10V
• Low Miller Charge
• Low QRR Body Diode
• UIS Capability (Single Pulse and Repetitive Pulse)
• Qualified to AEC Q101
FDB20AN06A0 Typical Application
• Motor / Body Load Control
• ABS Systems
• Powertrain Management
• Injection Systems
• DC-DC converters and Off-line UPS
• Distributed Power Architectures and VRMs
• Primary Switch for 12V and 24V systems
• ABS Systems
• Powertrain Management
• Injection Systems
• DC-DC converters and Off-line UPS
• Distributed Power Architectures and VRMs
• Primary Switch for 12V and 24V systems
FDB20AN06A0
PDF/DataSheet Download
- Datasheet: FDB20AN06A0
- File Size: 632101 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
- ·FDB035AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 60V, 80A, 3.5mз
- 242063 KB
- ·FDB045AN08
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel UltraFET Trench MOSFET 75V, 80A, 4.5mз
- 246234 KB
- ·FDB045AN08A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel UltraFET Trench MOSFET 75V, 80A, 4.5mз
- 246234 KB
- ·FDB050AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET
- 577561 KB
- ·FDB060AN08A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 75V, 80A, 6.0mз
- 258727 KB
- ·FDB070AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 60V, 80A, 7m
- 614008 KB
- ·FDB10AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 60V, 75A, 10.5mз
- 271594 KB
- ·FDB13AN06A0
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 60V, 62A, 13.5mohm
- 307282 KB
FDB20AN06A0 Relative Products
FDB16AN08A0
MOSFET N-CH 75V 58A TO-263AB

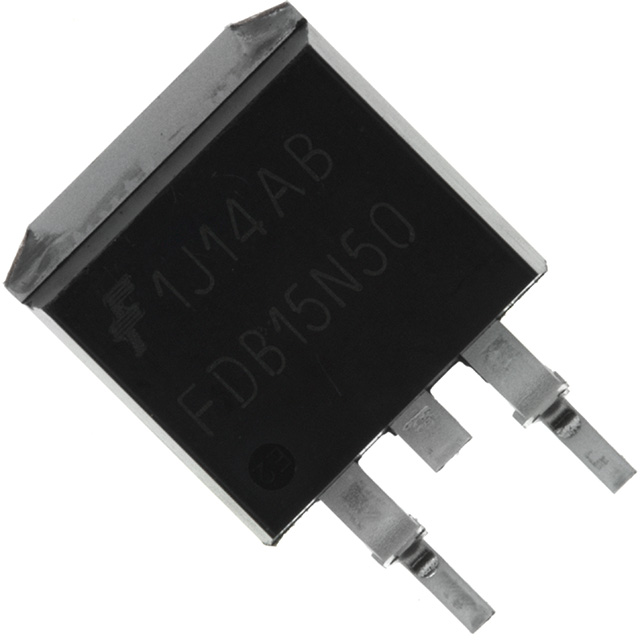

FDB15N50
MOSFET N-CH 500V 15A TO-263AB

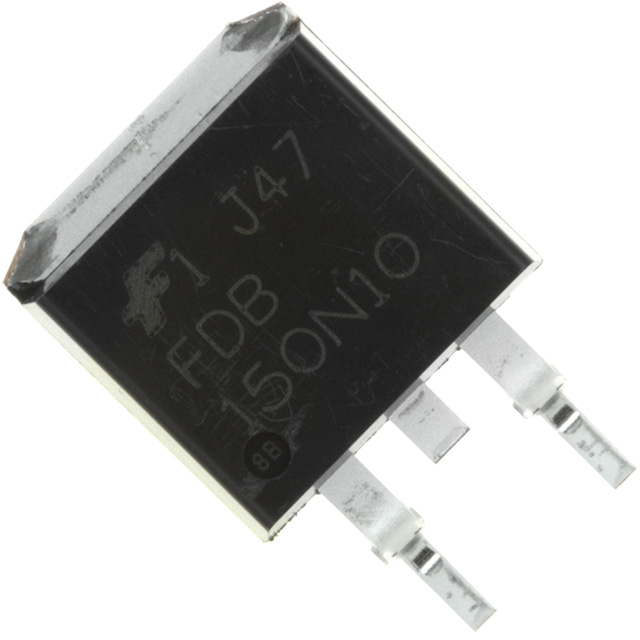

FDB150N10
