Part Number: FDB3652



MFG: FAIRC

Package Cooled: TO-263(D2PAK)

D/C: 09+



Urgent Purchase

FDB3652 Maximum Ratings

Symbol
Parameter
Ratings
Units
VDSS
Drain-Source Voltage
100
V
VGSS
Gate-Source Voltage
±20
V
ID
Drain Current
Continuous (TC = 25, VGS = 10V)
        61
A
Continuous (TC = 100, VGS = 10V)
43
A
Continuous (Tamb = 25, VGS = 10V, RJA = 43/W)
9
A
Pulsed
Figure 4
A
EAS
Single Pulse Avalanche Energy (Note 1)
182
mJ
PD
Power dissipation
150
W
Derate above 25
1.0
W/°C
TJ, Tstg
Operating and Storage Temperature
-55 to 175
°C

FDB3652 Features

• r DS(ON)= 14mΩ (Typ.), VGS= 10V, ID = 61A
• Qg(tot) = 41nC (Typ.), VGS=10V
• Low Miller Charge
• Low QRR Body Diode
• UIS Capability (Single Pulse and Repetitive Pulse)
• Qualified to AEC Q101

FDB3652 Typical Application

• DC/DC Converters and Off-line UPS
• Distributed Power Architectures and VRMs
• Primary Switch for 24V and 48V Systems
• High Voltage Synchronous Rectifier
• Direct Injection / Diesel Injection Systems
• 42V Automotive Load Control
• Electronic Valve Train Systems

FDB3652 datasheet

FDB3652
PDF/DataSheet Download

  • Datasheet: FDB3652
  • File Size: 278792 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find FDB3652 Suppliers

  • ·FDB035AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 60V, 80A, 3.5mз
  • 242063 KB
  • FDB035AN06A0 Datasheet Download
  • ·FDB045AN08
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel UltraFET Trench MOSFET 75V, 80A, 4.5mз
  • 246234 KB
  • FDB045AN08 Datasheet Download
  • ·FDB045AN08A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel UltraFET Trench MOSFET 75V, 80A, 4.5mз
  • 246234 KB
  • FDB045AN08A0 Datasheet Download
  • ·FDB050AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET
  • 577561 KB
  • FDB050AN06A0 Datasheet Download
  • ·FDB060AN08A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 75V, 80A, 6.0mз
  • 258727 KB
  • FDB060AN08A0 Datasheet Download
  • ·FDB070AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 60V, 80A, 7m
  • 614008 KB
  • FDB070AN06A0 Datasheet Download
  • ·FDB10AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 60V, 75A, 10.5mз
  • 271594 KB
  • FDB10AN06A0 Datasheet Download
  • ·FDB13AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 60V, 62A, 13.5mohm
  • 307282 KB
  • FDB13AN06A0 Datasheet Download

Related Part Number

FDB3652 Relative Products

  • FDB3632

    FDB3632

    MOSFET N-CHAN 100V TO-263AB

  • FDB3502

    FDB3502

    MOSFET N-CH 75V 6A TO-263AB

  • FDB33N25TM

    FDB33N25TM

    MOSFET N-CH 250V 33A D2PAK

  • FDB33N25

    FDB33N25

    These FDB33N25 N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe,DMOS technology.This advanced technology has been especially tailored to minimize on-state resistance, provide superior switchi...

  • FDB28N30TM

    FDB28N30TM

    MOSFET N-CH 300V D2PAK

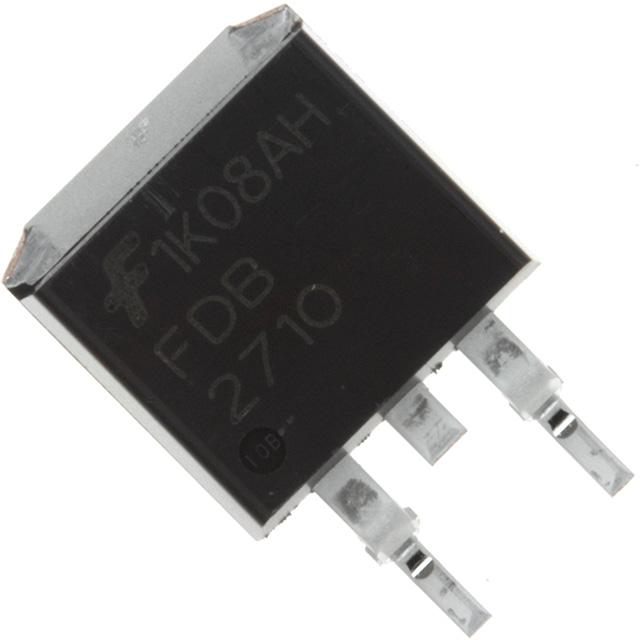

  • FDB2710
