Part Number: FDC796N



MFG: FAIRCHILD

Package Cooled: SSOT-6FLM

D/C: 2005

Description: This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC conver...


Urgent Purchase

FDC796N General Description


This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed.

FDC796N Maximum Ratings

Symbol
Parameter
 Ratings
Units
VDSS
VGSS
 Drain-Source Voltage
Gate-Source Voltage
30
± 20
12.5
40
2
1.1
−55 to +150
V

A

W

°C
ID
 Drain Current Continuous
Pulsed
(Note 1a)
PD
 Maximum Power Dissipation
(Note 1a)
(Note 1b)
TJ, TSTG Operating and Storage Junction Temperature Range

FDC796N Features

• 12.5 A, 30 V. RDS(ON) = 9 mΩ @ VGS = 10 V RDS(ON) = 12 mΩ @ VGS = 4.5 V
• High performance trench technology for extremely low RDS(ON)
• Low gate charge
• High power and current handling capability
• Fast switching speed.

FDC796N Typical Application

• DC/DC converter
• Power management
• Load switch

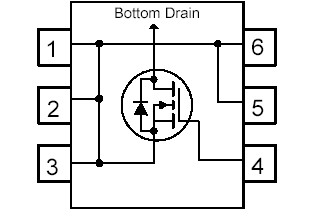

FDC796N Connection Diagram

FDC796N Connection Diagram
