Position: Home > Datasheet list > FDD Series > Index F > FDD5N50TM_WS
Electronica China

Purchase FDD5N50TM_WS, In-stock FDD5N50TM_WS From SeekIC.

MFG:Fairchild Semiconductor  Category:Discrete Semiconductor Products

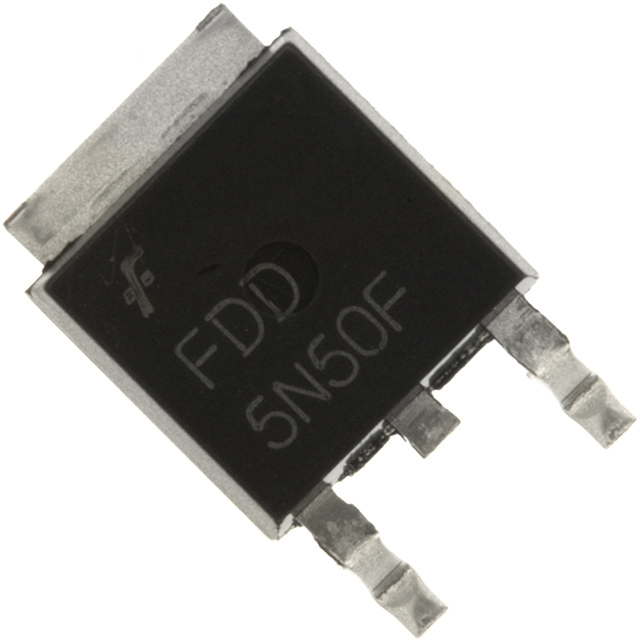

FDD5N50TM_WS Product Image

FDD Series Datasheet download

Five Points

Part Number: FDD5N50TM_WS

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor





Descriptions: MOSFET N-CH 500V DPAK

Price Break

2500

Unit Price

.28470

Extended Price

711.75

(All prices are in USD) Prices for reference only
Urgent Purchase

FDD5N50TM_WS General Description

MOSFET N-CH 500V DPAK

FDD5N50TM_WS Parameters

Technical/Catalog InformationFDD5N50TM_WS
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)500V
Current - Continuous Drain (Id) @ 25° C4A
Rds On (Max) @ Id, Vgs1.4 Ohm @ 2A, 10V
Input Capacitance (Ciss) @ Vds 640pF @ 25V
Power - Max40W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs15nC @ 10V
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
FET FeatureStandard
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDD5N50TM_WS
