FDG6301N

MOSFET SC70-6 N-CH 25V

product image

FDG6301N Picture
SeekIC No. : 00147030 Detail

FDG6301N: MOSFET SC70-6 N-CH 25V

floor Price/Ceiling Price

US $ .12~.27 / Piece | Get Latest Price
Part Number:
FDG6301N
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.27
  • $.22
  • $.15
  • $.12
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 25 V
Gate-Source Breakdown Voltage : 8 V Continuous Drain Current : 0.22 A
Resistance Drain-Source RDS (on) : 4 Ohms Configuration : Dual
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SC-70-6 Packaging : Reel

Description

Transistor Polarity : N-Channel
Drain-Source Breakdown Voltage : 25 V
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Configuration : Dual
Gate-Source Breakdown Voltage : 8 V
Package / Case : SC-70-6
Resistance Drain-Source RDS (on) : 4 Ohms
Continuous Drain Current : 0.22 A


Features:

·25 V, 0.22 A continuous, 0.65 A peak. RDS(ON) = 4 W @ VGS= 4.5 V, RDS(ON) = 5 W @ VGS= 2.7 V.
·Very low level gate drive requirements allowing direct operation in 3 V circuits (VGS(th) < 1.5 V).
·Gate-Source Zener for ESD ruggedness (>6kV Human Body Model).
·Compact industry standard SC70-6 surface mount package.

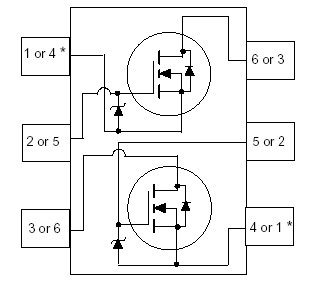

Pinout

  Connection Diagram


Specifications

Symbol
Parameter
FDG6301N
Units
VDSS
VGSS
Drain-Source Voltage
Gate-Source Voltage
25
8
0.22
0.65
0.3
-55 to 150
6.0
V
V
A

W
°C
kV
ID
Drain Current Continuous
Pulsed
PD
Power Dissipation for Single Operation (Note 1)
TJ,TSTG
ESD
Operating and Storage Junction Temperature Range
Electrostatic Discharge Rating MIL-STD-883D Human Body
Model (100pf/1500Ohm)

THERMAL CHARACTERISTICS
RJA Thermal Resistance, Junction-to-Ambient
415
°C/W



Description

These FDG6301N dual N-Channel logic level enhancement mode field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. This device FDG6301N has been designed especially for low voltage applications as a replacement for bipolar digital transistors and small signal MOSFETs.




Parameters:

Technical/Catalog InformationFDG6301N
VendorFairchild Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25° C220mA
Rds On (Max) @ Id, Vgs4 Ohm @ 220mA, 4.5V
Input Capacitance (Ciss) @ Vds 9.5pF @ 10V
Power - Max300mW
PackagingCut Tape (CT)
Gate Charge (Qg) @ Vgs0.4nC @ 4.5V
Package / CaseSC-70-6
FET Feature*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDG6301N
FDG6301N
FDG6301NCT ND
FDG6301NCTND
FDG6301NCT
