FDQ7698S

MOSFET NChannel PowerTrench Notebook Power

product image

FDQ7698S Picture
See larger image
SeekIC No. : 00162556 Detail

FDQ7698S: MOSFET NChannel PowerTrench Notebook Power

FDQ7698S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FDQ7698S
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : +/- 16 V Continuous Drain Current : 15 A
Resistance Drain-Source RDS (on) : 0.012 Ohms Configuration : Dual
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SO-14 Packaging : Reel

Description

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Configuration : Dual
Continuous Drain Current : 15 A
Gate-Source Breakdown Voltage : +/- 16 V
Resistance Drain-Source RDS (on) : 0.012 Ohms
Package / Case : SO-14


Features:

· Q2: 15 A, 30V. RDS(on) = 7.5 mW @ VGS = 10V
                            RDS(on) = 9 mW @ VGS = 4.5V
· Q1: 12A, 30V.  RDS(on) = 12 mW @ VGS = 10V
                            RDS(on) = 16 mW @ VGS = 4.5V


Pinout

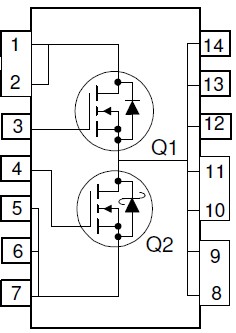

Connection Diagram


Specifications

Symbol
Parameter
Q2
Q1
Units
VDSS
 Drain-Source Voltage
30
30
V
VGSS
 Gate-Source Voltage
±16
±16
V
ID
 Drain Current Continuous (Note 1a)
Pulsed
15
12
A
50
50
PD
 Power Dissipation for Single Operation (Note 1a & 1b)
(Note 1c & 1d)
2.4
1.8
W
1.3

1.1

TJ,TSTG
 Operating and Storage Junction Temperature Range
55to+150
°C



Description

The FDQ7698S is designed to replace two single SO-8 MOSFETs in DC to DC power supplies The high-side switch (Q1) is designed with specific emphasis on reducing switching losses while the low-side switch (Q2) is optimized to reduce conduction losses using Fairchild's SyncFET TM technology.




Parameters:

Technical/Catalog InformationFDQ7698S
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C12A, 15A
Rds On (Max) @ Id, Vgs7.5 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds 1324pF @ 15V
Power - Max1.3W, 1.1W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs17nC @ 5V
Package / CaseSO-14
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDQ7698S
FDQ7698S
