FDS4080N3

MOSFET 40V N-Ch PowerTrench FLMP

product image

FDS4080N3 Picture
SeekIC No. : 00162409 Detail

FDS4080N3: MOSFET 40V N-Ch PowerTrench FLMP

floor Price/Ceiling Price

Part Number:
FDS4080N3
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 40 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 13 A
Resistance Drain-Source RDS (on) : 0.0105 Ohms Configuration : Single Triple Source
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Packaging : Reel

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 40 V
Maximum Operating Temperature : + 150 C
Package / Case : SOIC-8
Configuration : Single Triple Source
Continuous Drain Current : 13 A
Resistance Drain-Source RDS (on) : 0.0105 Ohms


Features:

• 13 A, 40 V RDS(ON) = 10.5 m @ VGS = 10 V
• High performance trench technology for extremely low RDS(ON)
• High power and current handling capability
• Fast switching (Qg = 30 nC )
• FLMP SO-8 package: Enhanced thermal performance in industry-standard package size



Application

• Synchronous rectifier
• DC/DC converte



Pinout

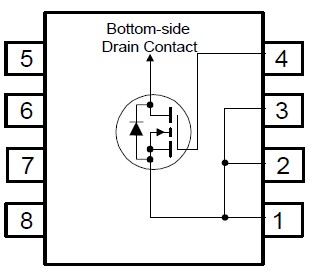

  Connection Diagram


Specifications

Symbol
Parameter
Ratings
Units
VDSS
Drain-Source Voltage
40
V
VGSS
Gate-Source Voltage
+20
V
ID
Draint Current - Continuous (Note 1)
13
A
- Pulsed
60
PD
Power Dissipation for Single Operation (Note 1a)
3.9
W
TJ, TSTG
Operating and Storage Junction Temperature Range
55 to +150
°C



Description

This FDS4080N3 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for "low side" synchronous rectifier operation, providing an extremely low RDS(ON) in a small package.




Parameters:

Technical/Catalog InformationFDS4080N3
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25° C13A
Rds On (Max) @ Id, Vgs10.5 mOhm @ 13A, 10V
Input Capacitance (Ciss) @ Vds 1750pF @ 20V
Power - Max3W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs40nC @ 10V
Package / Case8-SOIC
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDS4080N3
FDS4080N3
FDS4080N3TR ND
FDS4080N3TRND
FDS4080N3TR
