FDS4885C

Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Transistor Polarity : N and P-Channel
Configuration : Dual Dual Drain
Package / Case : SOIC-8 Narrow
Resistance Drain-Source RDS (on) : 0.017 Ohms
Drain-Source Breakdown Voltage : +/- 40 V
Continuous Drain Current : 7.5 A, - 6 A


Features:

Q1: N-Channel
7.5A, 40V R_DS(on) = 22m @ V_GS = 10V
                R_DS(on) = 35m @ V_GS = 7V
Q2: P-Channel
6A, 40V R_DS(on) = 31m @ V_GS = 10V
                  R_DS(on) = 42m@ V_GS = 4.5V
Fast switching speed
High power and handling capability in a widely used surface mount package


Application

· Synchronous rectifier
· Backlight inverter stage

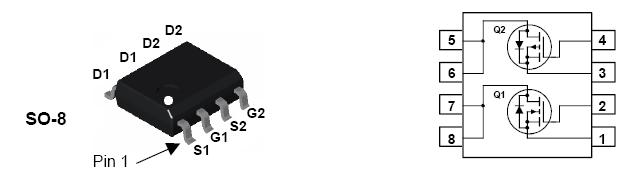

Pinout




Specifications

Symbol	Parameter		Q1	Q2	Units
VDSS	Drain-Source Voltage		40	40	V
VGSS	Gate-Source Voltage		±20	±20
ID	Drain Current	Continuous (Note 1a) Pulsed	7.5	-6	A
			20	-20
PD	Power Dissipation for Dual Operation		2		W
	Power Dissipation for Single Operation	(Note 1a) (Note 1b) (Note 1c)	1.6
			1
			0.9
TJ, TSTG	Operating and Storage Junction Temperature Range		55 to +150		°C

Description

These FDS4885C dual N- and P-Channel enhancement mode power field effect transistors are produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain superior switching performance.These devices FDS4885C are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.

Parameters:

Technical/Catalog Information	FDS4885C
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N and P-Channel
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25° C	7.5A, 6A
Rds On (Max) @ Id, Vgs	22 mOhm @ 7.5A, 10V
Input Capacitance (Ciss) @ Vds	900pF @ 20V
Power - Max	900mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	21nC @ 10V
Package / Case	SO-8
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS4885C FDS4885C
