FDS6064N7

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Package / Case : SOIC-8
Gate-Source Breakdown Voltage : +/- 8 V
Resistance Drain-Source RDS (on) : 0.0022 Ohms
Continuous Drain Current : 23 A
Configuration : Single Seven Source


Features:

• 23 A, 20 V. R_DS(ON) = 3.5 m @ V_GS = 4.5 V
R_DS(ON) = 4 m @ V_GS = 2.5 V
R_DS(ON) = 6 m @ V_GS = 1.8 V
• High performance trench technology for extremely low R_DS(ON)
• High power and current handling capability
• Fast switching, low gate charge
• FLMP SO-8 package: Enhanced thermal performance in industry-standard package size


Application

• Synchronous rectifier
• DC/DC converter

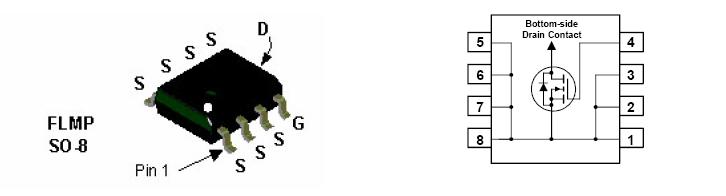

Pinout

Specifications

Symbol	Parameter	Ratings	Units
VDSS	Drain-Source Voltage	20	V
VGSS	Gate-Source Voltage	± 8
ID	Drain Current Continuous               Pulsed	23	A
		60
PD	Power Dissipation	3.0	W
TJ, TSTG	Operating and Storage Junction Temperature Range	55 to +150	°C

Description

This FDS6064N7 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for "low side" synchronous rectifier operation, providing an extremely low RDS(ON) in a small package.

Parameters:

Technical/Catalog Information	FDS6064N7
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	23A
Rds On (Max) @ Id, Vgs	3.5 mOhm @ 23A, 4.5V
Input Capacitance (Ciss) @ Vds	7191pF @ 10V
Power - Max	3W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	98nC @ 4.5V
Package / Case	8-SOIC
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS6064N7 FDS6064N7 FDS6064N7DKR ND FDS6064N7DKRND FDS6064N7DKR
