Part Number: FDS6678A



MFG: FAIRCHILD



D/C: 05+

Description: This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either...


Urgent Purchase

FDS6678A General Description


This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed.

FDS6678A Maximum Ratings

Symbol
Parameter
Ratings
Units
VDSS


 Drain-Source Voltage

30

V
VGSS
 Gate-Source Voltage
±12
V
ID
 Drain Current Continuous (Note 1a)
                       Pulsed
7.5
A
40

PD
 Power Dissipation for Single Operation (Note 1a)
                                                             (Note 1b)
                                                             (Note 1c)
2.5
W
1.2
1.0
TJ, TSTG
 Operating and Storage Junction Temperature Range
55 to +150
°C

FDS6678A Features

• 7.5 A, 30 V. RDS(ON) = 24 mΩ @ VGS = 4.5 V
                      RDS(ON) = 20 mΩ @ VGS = 10 V
• High performance trench technology for extremely low RDS(ON)
• Low gate charge (13 nC typical)
• High power and current handling capability

FDS6678A Typical Application

• DC/DC converter

FDS6678A Connection Diagram

FDS6678A Connection Diagram

FDS6678A datasheet

FDS6678A
PDF/DataSheet Download

  • Datasheet: FDS6678A
  • File Size: 101347 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find FDS6678A Suppliers

  • ·FDS100BA60
  • SANREX [SanRex Corporation]
  • DIODE MODULE(F.R.D)
  • 301116 KB
  • FDS100BA60 Datasheet Download
  • ·FDS2070N3
  • FAIRCHILD [Fairchild Semiconductor]
  • 150V N-Channel PowerTrench MOSFET
  • 197332 KB
  • FDS2070N3 Datasheet Download
  • ·FDS2070N7
  • FAIRCHILD [Fairchild Semiconductor]
  • 150V N-Channel PowerTrench MOSFET
  • 205597 KB
  • FDS2070N7 Datasheet Download
  • ·FDS2170N3
  • FAIRCHILD [Fairchild Semiconductor]
  • 200V N-Channel PowerTrench剖 MOSFET
  • 205969 KB
  • FDS2170N3 Datasheet Download
  • ·FDS2170N7
  • FAIRCHILD [Fairchild Semiconductor]
  • 200V N-Channel PowerTrench MOSFET
  • 214065 KB
  • FDS2170N7 Datasheet Download
  • ·FDS2570
  • FAIRCHILD [Fairchild Semiconductor]
  • 150V N-Channel PowerTrench MOSFET
  • 237945 KB
  • FDS2570 Datasheet Download
  • ·FDS2572
  • FAIRCHILD [Fairchild Semiconductor]
  • 150V, 0.047 Ohms, 4.9A, N-Channel UltraFET Trench MOSFET
  • 280425 KB
  • FDS2572 Datasheet Download
  • ·FDS2582
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 150V, 4.1A, 66mз
  • 290249 KB
  • FDS2582 Datasheet Download

Related Part Number

FDS6678A Relative Products

  • FDS6676S

    FDS6676S

    The FDS6676S is designed to replace a single SO-8 OSFET and Schottky diode in synchronous DC:DC ower supplies. This 30V MOSFET is designed to aximize power conversion efficiency, providing a low DS(ON) and low gate charge. The FDS6676S includes n integrated ...

  • FDS6676AS

    FDS6676AS

    The FDS6676AS is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC:DC power supplies. This 30V MOSFET is designed to maximize power conversion efficiency, providing a low RDS(ON) and low gate charge. The FDS6676AS includes an inte...

  • FDS6676

    FDS6676

    This FDS6676N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching sp...

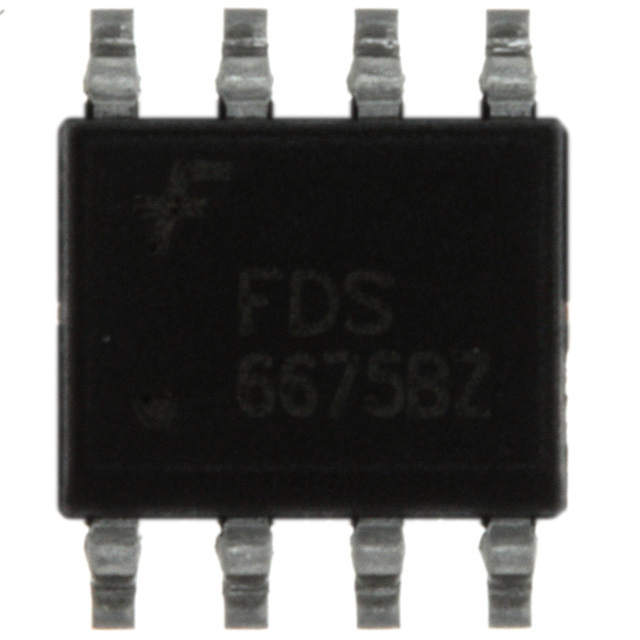

  • FDS6675BZ
