MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Descriptions: MOSFET N-CH 30V 16A 8SOIC
2500
.52000
1300.00
| Technical/Catalog Information | FDS6689S |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 16A |
| Rds On (Max) @ Id, Vgs | 5.4 mOhm @ 16A, 10V |
| Input Capacitance (Ciss) @ Vds | 3290pF @ 15V |
| Power - Max | 1W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 78nC @ 10V |
| Package / Case | 8-SOIC |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDS6689S FDS6689S |
FDS6689S
PDF/DataSheet Download
The FDS6688S is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC:DC power supplies. This 30V MOSFET is designed to maximize power conversion efficiency, providing a low RDS(ON) and low gate charge. The FDS6688S includes an integr...
MOSFET N-CH 30V 14.5A SO-8
This FDS6688 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for "low side" synchronous rectifier operation, provi...
This FDS6685 P-Channel Logic Level MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain superior switching performance. These devices FDS6685 are w...
This FDS6682 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for "low side" synchronous rectifier operation, provi...

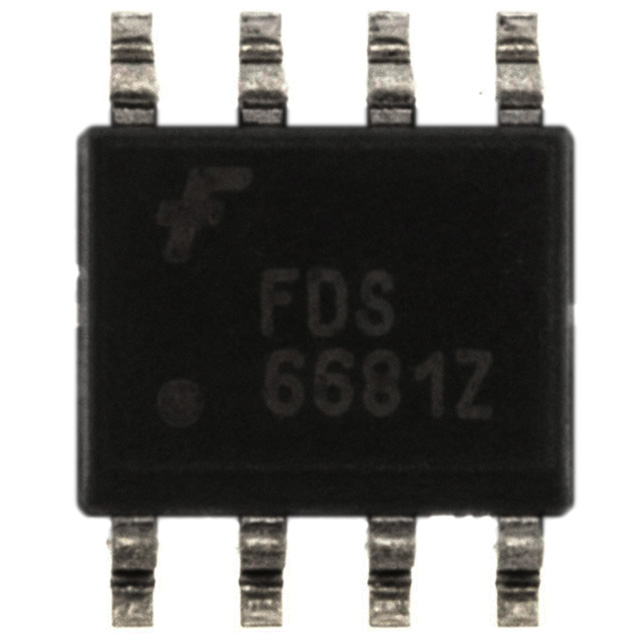

This FDS6681Z P-Channel MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench® process that has been especially tailored to minimize the on-state resistance.This device FDS6681Zis well suited for Power Management and load switching appl...
