Purchase FDS6690S, In-stock FDS6690S From SeekIC.
MFG:FCS
Part Number: FDS6690S
MFG: FCS
Description: The FDS6690S is designed to replace a single SO-8 OSFET and Schottky diode in synchronous DC:DC ower s...
- Table of contents:
FDS6690S
-
Suppliers
DataSheet
General Description
FDS6690S General Description
The FDS6690S is designed to replace a single SO-8 OSFET and Schottky diode in synchronous DC:DC ower supplies. This 30V MOSFET is designed to aximize power conversion efficiency, providing a low RDS(ON) and low gate charge. The FDS6690S includes an integrated Schottky diode using Fairchild's monolithic SyncFET technology. The performance of the FDS6690S as the low-side switch in a synchronous rectifier is close to the performance of the FDS6690A in parallel with a Schottky diode.
FDS6690S Maximum Ratings
|
Symbol |
Parameter |
Ratings |
Units |
|
VDSS |
Drain-Source Voltage |
30 |
V |
|
VGSS |
Gate-Source Voltage |
+20 |
V |
|
ID |
Draint Current - Continuous (Note 1) |
10 |
A |
|
- Pulsed |
50 | ||
|
PD |
Power Dissipation for Single Operation (Note 1a) |
2.5 |
W |
|
(Note 1b) |
1.2 | ||
|
(Note 1c)
|
1
| ||
|
TJ, TSTG |
Operating and Storage Junction Temperature Range |
55 to +150 |
°C |
FDS6690S Features
· 10 A, 30 V. RDS(ON) = 0.016 W @ VGS = 10 V
RDS(ON) = 0.024 W @ VGS = 4.5 V
· Includes SyncFET Schottky diode
· Low gate charge (11 nC typical)
· High performance trench technology for extremely low RDS(ON)
· High power and current handling capability
RDS(ON) = 0.024 W @ VGS = 4.5 V
· Includes SyncFET Schottky diode
· Low gate charge (11 nC typical)
· High performance trench technology for extremely low RDS(ON)
· High power and current handling capability
FDS6690S Typical Application
· DC/DC converter
· Motor drives
· Motor drives
FDS6690S Connection Diagram
FDS6690S
PDF/DataSheet Download
- Datasheet: FDS6690S
- File Size: 269172 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
- ·FDS100BA60
- SANREX [SanRex Corporation]
- DIODE MODULE(F.R.D)
- 301116 KB
- ·FDS2070N3
- FAIRCHILD [Fairchild Semiconductor]
- 150V N-Channel PowerTrench MOSFET
- 197332 KB
- ·FDS2070N7
- FAIRCHILD [Fairchild Semiconductor]
- 150V N-Channel PowerTrench MOSFET
- 205597 KB
- ·FDS2170N3
- FAIRCHILD [Fairchild Semiconductor]
- 200V N-Channel PowerTrench剖 MOSFET
- 205969 KB
- ·FDS2170N7
- FAIRCHILD [Fairchild Semiconductor]
- 200V N-Channel PowerTrench MOSFET
- 214065 KB
- ·FDS2570
- FAIRCHILD [Fairchild Semiconductor]
- 150V N-Channel PowerTrench MOSFET
- 237945 KB
- ·FDS2572
- FAIRCHILD [Fairchild Semiconductor]
- 150V, 0.047 Ohms, 4.9A, N-Channel UltraFET Trench MOSFET
- 280425 KB
- ·FDS2582
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel PowerTrench MOSFET 150V, 4.1A, 66mз
- 290249 KB
FDS6690S Relative Products
FDS6690AS
The FDS6690AS is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC:DC power supplies. This 30V MOSFET is designed to maximize power conversion efficiency, providing a low RDS(ON) and low gate charge. The FDS6690AS includes an inte...
-
FDS6690A
MOSFET N-CHAN 30V 11A 8SOIC
FDS6690
This FDS6690N Channel Logic Level MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. The MOSFET FDS6690 features faster switching and lower gate cha...
-
FDS6689S
MOSFET N-CH 30V 16A 8SOIC
-
FDS6688S
The FDS6688S is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC:DC power supplies. This 30V MOSFET is designed to maximize power conversion efficiency, providing a low RDS(ON) and low gate charge. The FDS6688S includes an integr...

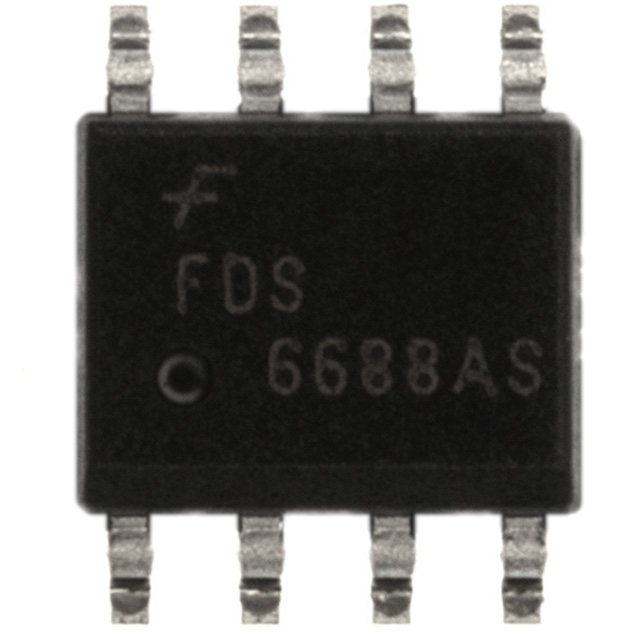

FDS6688AS
