Part Number: FDS9933A



MFG: FAI

Package Cooled: SMD



Description: These P-Channel 2.5V specified MOSFETs are produced using Fairchild Semiconductor's advanced PowerTren...


Urgent Purchase

FDS9933A General Description


These P-Channel 2.5V specified MOSFETs are produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

FDS9933A Maximum Ratings

Symbol Parameter
Ratings
Units
VDSS Drain-Source Voltage
-20
V
VGSS Gate-Source Voltage
±8
ID
 Drain Current
Continuous (Note 1a)
Pulsed
-3.8
A
-20
PD

Power Dissipation for Dual Operation
2
W
Power Dissipation for Single Operation

 (Note 1a)
(Note 1b)
(Note 1c)
1.6
1
0.9
TJ, TSTG Operating and Storage Junction Temperature Range
55 to +150
°C

FDS9933A Features

• -3.8 A, -20 V. RDS(on) = 0.075 @ VGS = -4.5 V
                        RDS(on) = 0.105 @ VGS = -2.5 V.
• Low gate charge ( 7nC typical ).
• Fast switching speed.
• High performance trench technology for extremely low RDS(on).
• High power and current handling capability.

FDS9933A Typical Application

• Load switch
• DC/DC converter
• Motor drives

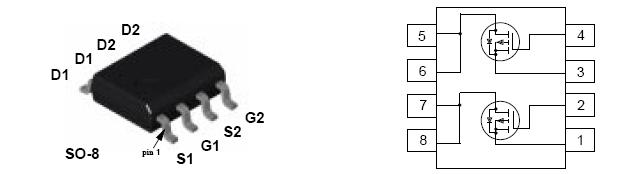

FDS9933A Connection Diagram

FDS9933A Connection Diagram

FDS9933A datasheet

FDS9933A
PDF/DataSheet Download

  • Datasheet: FDS9933A
  • File Size: 196212 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download
