FFPF14X150S

Features: High voltage and high reliabilityHigh speed switchingLow forward voltageApplicationSuitable for damper diode in horizontal deflection circuitsPinoutSpecifications Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 1500 V IF(AV) Average Rectified For...

product image

FFPF14X150S Picture
See larger image
SeekIC No. : 004341377 Detail

FFPF14X150S: Features: High voltage and high reliabilityHigh speed switchingLow forward voltageApplicationSuitable for damper diode in horizontal deflection circuitsPinoutSpecifications Symbol Parameter...

FFPF14X150S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FFPF14X150S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High voltage and high reliability
High speed switching
Low forward voltage


Application

Suitable for damper diode in horizontal
deflection circuits

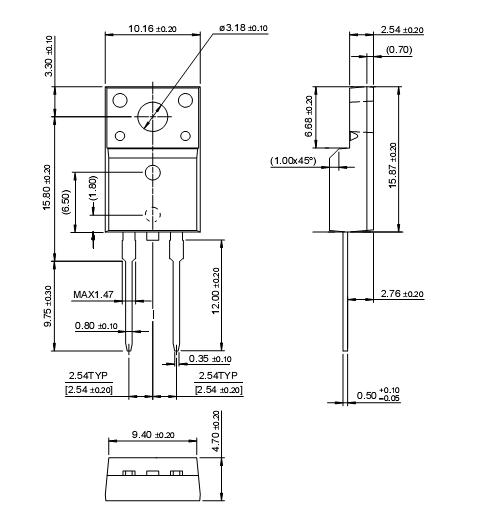

Pinout

Connection Diagram


Specifications


Symbol Parameter Value Units
VRRM

Peak Repetitive Reverse Voltage 1500 V
IF(AV) Average Rectified Forward Current @ TC = 125 °C 14 A
IFSM Non-repetitive Peak Surge Current
                       60Hz Single Half-Sine Wave		 140 A
JT, TSTG Operating Junction and Storage Temperature - 65 to +150°C
