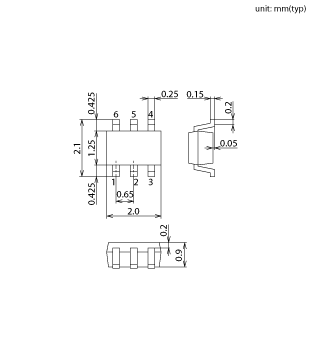

PinoutSpecifications Absolute maximum ratingsVCEO [V]10IC [A]0.07PC [W]0.3When mounted on ceramic substrate (250mm²×0.8mm) 1unit Electrical characteristicshFE min90hFE max200VCE [V]5IC [A]0.02fT typ [MHz]0.007VCE [V]5IC [mA]20VCE (sat) typ [V]-VCE (sat) max [V]-IC [A]-IB [mA]-
FH102A: PinoutSpecifications Absolute maximum ratingsVCEO [V]10IC [A]0.07PC [W]0.3When mounted on ceramic substrate (250mm²×0.8mm) 1unit Electrical characteristicshFE min90hFE max200VCE [V]5...
