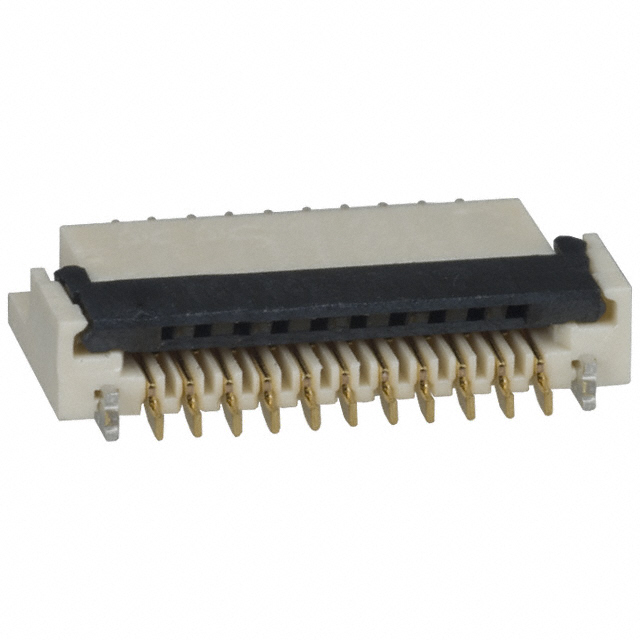

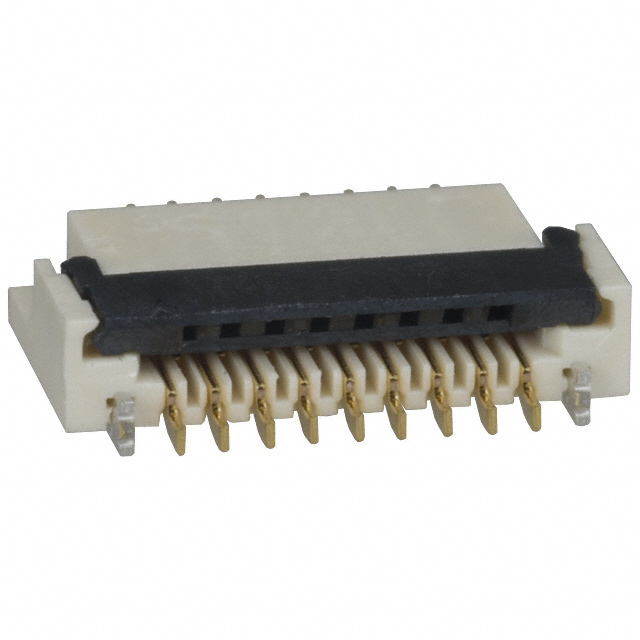

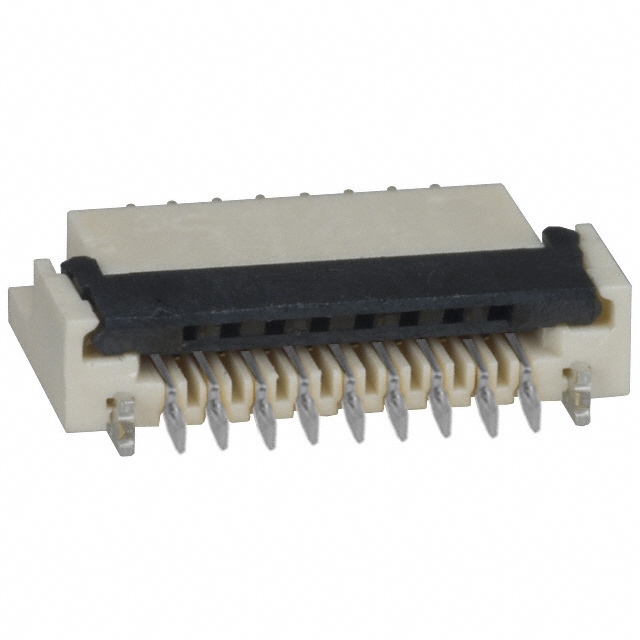

FH18-17S-0.3SHW

Number of Positions / Contacts :
Product Type : Boardmount
Mounting Style : SMD/SMT
Contact Material : Phosphor Bronze
Housing Material : Liquid Crystal Polymer (LCP)
Contact Plating : Tin Lead
Mounting Angle : Right Angle
Current Rating : 0.15 A
Pitch : 0.67 mm
Voltage Rating : 30 VAC


Features:

1. Low profile 0.3mm pitch FPC connectors
In response to continuous miniturization of products, the demand for maller contact spacing on connectors is increasing. Flexible printed ircuits(FPC) with contact pitch of 0.3mm are used with increased requency. FH18 series connectors fullfill this requirement. In ddition, these connectors occupy less board space and are lighter han comparable connectors with contacts spaced at 0.5mm.
2. Improved Retention of FPC
Two types of contacts design are combined in the FH18 connector, ero insertion force(ZIF) and low insertion force(LIF). Inserted FPC is eld in place by the LIF contact, allowing operator to close down the ctuator and engage the ZIF contacts to assure complete connection. . Easy to use Flip-Lock Actuator
Flip-lock (rotating type) ZIF mechanism enables good connectivity of PC by a simple operation and light force. No board space is required or flip lock operation as compared to slide lock ZIF connectors.
4. Placement on Board
The leads are on two sides of the connector, spaced on 0.6mm and re visible for solder joint inspection. Flat top surface of the connector llows board placement with automated equipment.
5. Variety of Contact Positions
The connectors are available with 17,21,25,27,39,45 and 51 contacts.

Application

·Notebook computers, printers, PDAs, digital cameras and other ompact devices for interconnecting the main circuit board with the CD, PDP (Plasma Display),HDD or other device.


Parameters:

Technical/Catalog Information	FH18-17S-0.3SHW
Vendor	Hirose Electric Co Ltd (VA)
Category	Connectors
Pitch	0.012" (0.30mm)
Mounting Type	Surface Mount, Right Angle
Features	Low Insertion Force (LIF)
Packaging	Cut Tape (CT)
Connector Type	Bottom Contacts
Number of Positions	17
Locking Feature	Flip Lock
Termination	Solder
FFC, FCB Thickness	0.30mm
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	FH18 17S 0 3SHW FH1817S03SHW HFM17CT ND HFM17CTND HFM17CT
