FIN1001

Features: • Greater than 600Mbs data rate• 3.3V power supply operation• 0.5ns maximum differential pulse skew• 1.5ns maximum propagation delay• Low power dissipation• Power-Off protection• Meets or exceeds the TIA/EIA-644 LVDS standard• Flow-through ...

product image

FIN1001 Picture
See larger image
SeekIC No. : 004341608 Detail

FIN1001: Features: • Greater than 600Mbs data rate• 3.3V power supply operation• 0.5ns maximum differential pulse skew• 1.5ns maximum propagation delay• Low power dissipation...

FIN1001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FIN1001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Greater than 600Mbs data rate
• 3.3V power supply operation
• 0.5ns maximum differential pulse skew
• 1.5ns maximum propagation delay
• Low power dissipation
• Power-Off protection
• Meets or exceeds the TIA/EIA-644 LVDS standard
• Flow-through pinout simplifies PCB layout
• 5-Lead SOT23 package saves space




Pinout

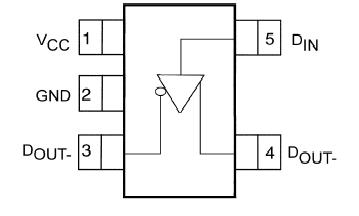

Connection Diagram




Specifications

Supply Voltage (VCC) ....................................−0.5V to +4.6V
DC Input Voltage (DIN) ....................................−0.5V to +6V
DC Output Voltage (DOUT) ...........................−0.5V to +4.6V
Driver Short Circuit Current (IOSD) .....................Continuous
Storage Temperature Range (TSTG) ......−65°C to +150°C
Max Junction Temperature (TJ) .................................150°C
Lead Temperature (TL)
(Soldering, 10 seconds) ...........................................260°C
ESD (Human Body Model) ...................................... 7500V
ESD (Machine Model) ............................................... 500V




Description

This single driver of FIN1001 is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology.The driver translates LVTTL signal levels to LVDS levels with a typical differential output swing of 350 mV which provides low EMI at ultra low power dissipation even at high frequencies. FIN1001 is ideal for high speed transfer of clock or data.

The FIN1001 can be paired with its companion receiver,the FIN1002, or with any other LVDS receiver.
