Product Details

Description



Features:

• Greater than 400Mbs data rate
• Flow-through pinout simplifies PCB layout
• 3.3V power supply operation
• 0.4ns maximum differential pulse skew
• 2.5ns maximum propagation delay
• Low power dissipation
• Power-Off protection
• Fail safe protection for open-circuit, shorted and terminated non-driven input conditions
• Meets or exceeds the TIA/EIA-644 LVDS standard
• 14-Lead TSSOP package saves space



Pinout

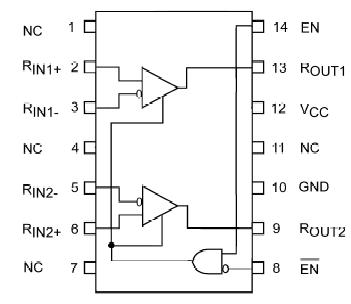

  Connection Diagram


Specifications

Supply Voltage (VCC) ..........................................−0.5V to +4.6V
LVDS DC Input Voltage (VIN) ...............................−0.5V to +4.6V
LVTTL DC Input Voltage (VIN) ...................................−0.5V to 6V
DC Output Voltage (VOUT) .......................................−0.5V to 6V
DC Output Current (IO) .....................................................16mA
Storage Temperature Range (TSTG) .............−65°C to +150°C
Max Junction Temperature (TJ) ........................................150°C
Lead Temperature (TL)
(Soldering, 10 seconds) ..................................................260°C
ESD (Human Body Model) .............................................10,000V
ESD (Machine Model) .........................................................600V



Description

This dual receiver of FIN1026 is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology.The receiver translates LVDS levels, with a typical differential input threshold of 100mV, to LVTTL signal levels.LVDS provides low EMI at ultra low power dissipation even at high frequencies. FIN1026 is ideal for high speed transfer of clock and data.

The FIN1026 can be paired with its companion driver, the FIN1025, or any other LVDS driver.
