FIN1028

Features: • Greater than 400Mbs data rate• 3.3V power supply operation• 0.4ns maximum differential pulse skew• 2.5ns maximum propagation delay• Low power dissipation• Power-Off protection• Fail safe protection for open-circuit, shorted and terminated condi...

product image

FIN1028 Picture
See larger image
SeekIC No. : 004341618 Detail

FIN1028: Features: • Greater than 400Mbs data rate• 3.3V power supply operation• 0.4ns maximum differential pulse skew• 2.5ns maximum propagation delay• Low power dissipation...

FIN1028 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FIN1028
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Greater than 400Mbs data rate
• 3.3V power supply operation
• 0.4ns maximum differential pulse skew
• 2.5ns maximum propagation delay
• Low power dissipation
• Power-Off protection
• Fail safe protection for open-circuit, shorted and terminated conditions
• Meets or exceeds the TIA/EIA-644 LVDS standard
• Flow-through pinout simplifies PCB layout
• 8-Lead SOIC and 8-terminal MLP packages save space

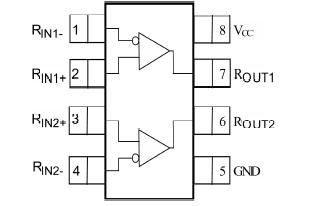

Pinout






Specifications

Supply Voltage (VCC) ..............................................−0.5V to +4.6V
DC Input Voltage (RINx+, RINx-) ............................−0.5V to +4.7V
DC Output Voltage (ROUTx) .......................................−0.5V to +6V
DC Output Current (IO) .........................................................16 mA
Storage Temperature Range (TSTG) .................−65°C to +150°C
Max Junction Temperature (TJ) ............................................150°C
Lead Temperature (TL)
(Soldering, 10 seconds) .......................................................260°C
ESD (Human Body Model) ................................................. 6500V
ESD (Machine Model).......................................................... 300V




Description

This dual receiver of FIN1028 is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology.The receiver translates LVDS levels, with a typical differential input threshold of 100 mV, to LVTTL signal levels.LVDS provides low EMI at ultra low power dissipation even at high frequencies. FIN1028 is ideal for high speed transfer of clock and data.

The FIN1028 can be paired with its companion driver, the FIN1027, or any other LVDS driver.
