FIN1104

Features: • Greater than 800 Mbps data rate• 3.3V power supply operation• 3.5 ps maximum random jitter and 135 ps maximum deterministic jitter• Wide rail-to-rail common mode range• LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly• Ultra low power co...

product image

FIN1104 Picture
See larger image
SeekIC No. : 004341626 Detail

FIN1104: Features: • Greater than 800 Mbps data rate• 3.3V power supply operation• 3.5 ps maximum random jitter and 135 ps maximum deterministic jitter• Wide rail-to-rail common mode ...

FIN1104 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FIN1104
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Greater than 800 Mbps data rate
• 3.3V power supply operation
• 3.5 ps maximum random jitter and 135 ps maximum deterministic jitter
• Wide rail-to-rail common mode range
• LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly
• Ultra low power consumption
• 20 ps typical channel-to-channel skew
• Power off protection
• > 7.5 kV HBM ESD Protection
• Meets or exceeds the TIA/EIA-644-A LVDS standard
• Available in space saving 24-Lead TSSOP package
• Open circuit fail safe protection
• VBB reference output




Pinout

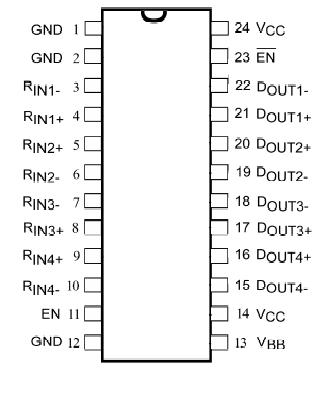

Connection Diagram




Specifications

Supply Voltage (VCC) ...............................................−0.5V to +4.6V
LVDS DC Input Voltage (VIN) ...................................−0.5V to +4.6V
LVDS DC Output Voltage (VOUT).............................. −0.5V to +4.6V
Driver Short Circuit Current (IOSD) .....................Continuous 10 mA
Storage Temperature Range (TSTG)................. −65°C to +150°C
Max Junction Temperature (TJ) ............................................150°C
Lead Temperature (TL)
(Soldering, 10 seconds)....................................................... 260°C
ESD (Human Body Model)..................................................... 7500V
ESD (Machine Model) ..............................................................400V



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FIN1104MTC Full Production RoHS Compliant $2.67 TSSOP 24 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FIN1104
FIN1104MTCX Full Production RoHS Compliant $2.67 TSSOP 24 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FIN1104
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FIN1104 is available. Click here for more information .





Description

This 4 port repeater is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The FIN1104 accepts and outputs LVDS levels with a typical differential output swing of 330 mV which provides low EMI at ultra low power dissipation even at high frequencies. The FIN1104 provides a VBB reference for AC coupling on the inputs. In addition the FIN1104 can directly accept LVPECL, HSTL, and SSTL-2 for translation to LVDS.
