FIN1531

Features: • Greater than 400Mbs data rate• 5V power supply operation• 400ps max differential pulse skew• 2.0ns maximum propagation delay• Low power dissipation• Power-Off protection• Meets or exceeds the TIA/EIA-644 LVDS standard• Pin compatible with...

product image

FIN1531 Picture
See larger image
SeekIC No. : 004341634 Detail

FIN1531: Features: • Greater than 400Mbs data rate• 5V power supply operation• 400ps max differential pulse skew• 2.0ns maximum propagation delay• Low power dissipation• P...

FIN1531 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FIN1531
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Greater than 400Mbs data rate
• 5V power supply operation
• 400ps max differential pulse skew
• 2.0ns maximum propagation delay
• Low power dissipation
• Power-Off protection
• Meets or exceeds the TIA/EIA-644 LVDS standard
• Pin compatible with equivalent RS-422 and PECL devices
• 16-Lead SOIC and TSSOP packages save space




Pinout

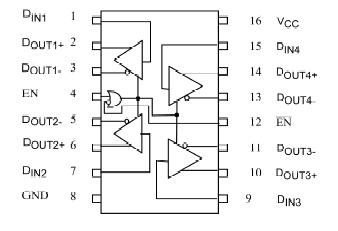

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FIN1531M Full Production RoHS Compliant $1.07 SOIC 16 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FIN1531
FIN1531MTC Full Production RoHS Compliant $1.07 TSSOP 16 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FIN1531
FIN1531MTCX Full Production RoHS Compliant $1.07 TSSOP 16 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FIN1531
FIN1531MX Full Production RoHS Compliant $1.07 SOIC 16 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FIN1531
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FIN1531 is available. Click here for more information .


Supply Voltage (VCC) ............................................−0.5V to +6V
DC Input Voltage (VIN)......................................... −0.5V to +6V
DC Output Voltage (VOUT) ...................................−0.5V to +6V
Driver Short Circuit Current (IOSD)......................... Continuous
Storage Temperature Range (TSTG) ...........−65°C to +150°C
Max Junction Temperature (TJ) ......................................150°C
Lead Temperature (TL)
(Soldering, 10 seconds)................................................ 260°C
ESD (Human Body Model) .......................................... 8000V
ESD (Machine Model) ................................................... 400V




Description

This quad driver of FIN1531 is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology.The driver translates 5V TTL/CMOS signal levels to LVDS levels with a typical differential output swing of 350 mV which provides low EMI at ultra low power dissipation even at high frequencies. FIN1531 is ideal for high speed transfer of clock and data.

The FIN1531 can be paired with its companion receiver,the FIN1532, or with any other Fairchild LVDS receiver.
