Product Details

Description

Features:

• High Output Power: 29dBm (typ.)
• High Linear Gain: 20dB (typ.)
• Low In/Out VSWR
• Integrated Output Power Monitor
• Impedance Matched Zin/Zout = 50Ω
• Small Hermetic Metal-Ceramic Package (VF)

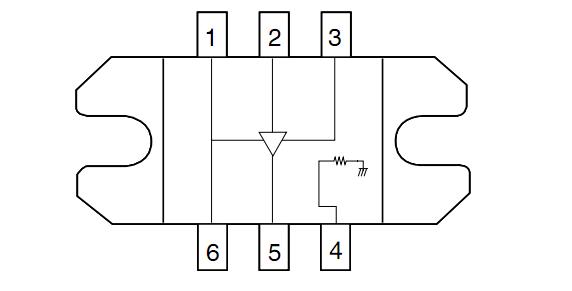

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	VALUE	UNIT
Collector-Base Voltage	V_CBO	350	V
Collector-Emitter Voltage	V_CEO	350	V
Emitter-Base Voltage	V_EBO	5	V
Continuous Collector Current	I_C	500	mA
Power Dissipation at T_amb =25°C	P_tot	330	mW
Operating and Storage Temperature Range	T_j:T_stg	-55 to +150	°C

Description

The FMM5017VF is a MMIC amplifier designed for VSAT applications as a driver or output stage in the 14.0 to 14.5 GHz band. This device is well suited for designs that require less than 1 Watt and lower cost.

Fujitsu's stringent Quality Assurance Program FMM5017VF assures the highest reliability and consistent performance.
