Product Details

Description

Features:

. 3x3x0.9mm Packaged pHEMT Switch
. Very High Tx-Rx isolation
. Suitable for WLAN 802.11a and 802.11b/g Applications
. Filtronic Advanced GaAs pHEMT Technology
. Low Insertion Loss
. Excellent low control voltage performance

Pinout

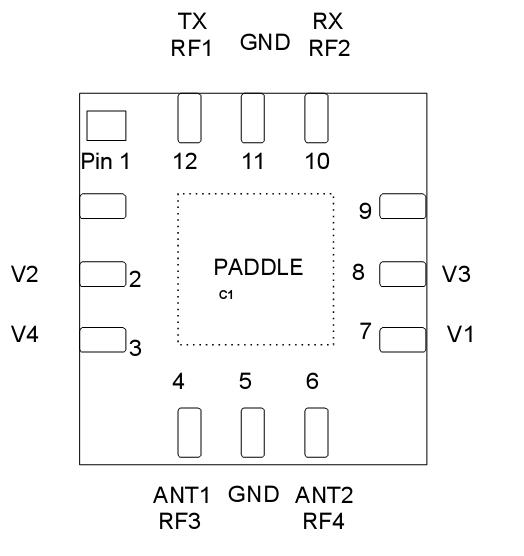

Connection Diagram

Specifications

Parameter	Symbol	Absolute Maximum
Max Input Power	P_in	+36dBm
Control Voltage	V_ctrl	+5V
Operating Temperature	T_oper	-40°C to +100°C
Storage Temperature	T_stor	-55°C to +150°C

Description

The FMS2007QFN is a low loss linear Double-Pole Double-Throw dual band diversity switch designed for use in WLAN applications. The die is fabricated using the Filtronic FL05 0.5m switch
process technology, which offers leading edge performance optimised for switch applications. FMS2007QFN applications are for UNII, Hiperlan, 802.11a and 802.11b/g systems that employ two antennas for transmit and receive diversity.
