Part Number: FMS2016QFN-1
Description: The FMS2016QFN is a low loss, high power and linear single pole four throw Gallium Arsenideanten...
- Table of contents:
FMS2016QFN-1
-
Suppliers
DataSheet
General Description
FMS2016QFN-1 General Description
The FMS2016QFN is a low loss, high power and linear single pole four throw Gallium Arsenide antenna switch designed for use in mobile handset applications. The die is fabricated using the Filtronic FL05 0.5m switch process technology, which offers excellent performance optimised for switch applications. The FMS2016QFN is designed for use in dual/tri and quad band GSM handset antenna switch modules and RF front-end modules. It can also find use in other applications where high power and linear RF switching is necessary.
FMS2016QFN-1 Maximum Ratings
| Parameter | Symbol | Absolute Maximum |
| Max Input Power | Pin | +38dBm |
| Control Voltage | V ctrl | +5V |
| Operating Temp | T oper | -40°C to +100°C |
| Storage Temp | T stor | -55°C to +150°C |
FMS2016QFN-1 Features
3x3x0.9mm Packaged pHEMT Switch
NiPdAu finish for Military and High
reliability applications
Excellent low control voltage performance
Excellent harmonic performance under
GSM/DCS/PCS/EDGE power levels
Very high isolation: >29dB at 1.8GHz
Very low Insertion loss: 0.65dB at 1.8GHz
Very low control current
NiPdAu finish for Military and High
reliability applications
Excellent low control voltage performance
Excellent harmonic performance under
GSM/DCS/PCS/EDGE power levels
Very high isolation: >29dB at 1.8GHz
Very low Insertion loss: 0.65dB at 1.8GHz
Very low control current

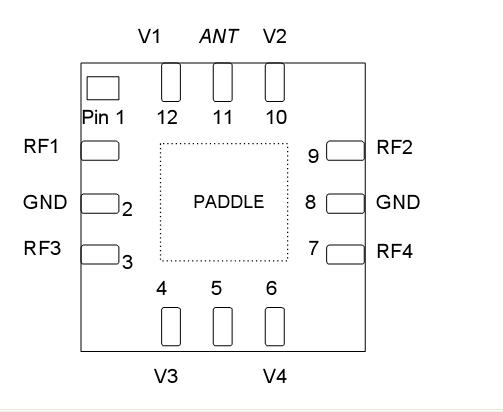

FMS2016QFN-1 Connection Diagram
FMS2016QFN-1
