Part Number: FMS2020QFN
Description: The FMS2020QFN is a low loss, high power and linear single pole dual throw Gallium Arsenide antenna sw...
- Table of contents:
FMS2020QFN
-
Suppliers
DataSheet
General Description
FMS2020QFN General Description
The FMS2020QFN is a low loss, high power and linear single pole dual throw Gallium Arsenide antenna switch. The die is fabricated using the Filtronic FL05 0.5m switch process technology, which offers leading edge performance optimised for switch applications. The FMS2020QFN is designed for use in L, S, and C band wireless applications and WLAN access points where high linearity switching is required.
FMS2020QFN Maximum Ratings
|
Parameter |
Symbol |
Absolute Maximum |
|
Max Input Power |
Pin |
+38dBm |
|
Control Voltage |
Vctrl |
+5V |
|
Operating Temperature |
Toper |
-40°C to +100°C |
|
Storage Temperature |
Tstor |
-55°C to +150°C |
FMS2020QFN Features
. 3x3x0.9mm Packaged pHEMT Switch
. Suitable for L, S, and C-band digital
cellular, cordless telephony and WLAN applications
. High isolation, 25dB typ at 2.5GHz
. Low insertion loss, 0.5dB typ at 2.5GHz
. Low insertion loss, 1.0dB typ at 6GHz
. P0.1dB > 38dBm at 2GHz
. Suitable for L, S, and C-band digital
cellular, cordless telephony and WLAN applications
. High isolation, 25dB typ at 2.5GHz
. Low insertion loss, 0.5dB typ at 2.5GHz
. Low insertion loss, 1.0dB typ at 6GHz
. P0.1dB > 38dBm at 2GHz

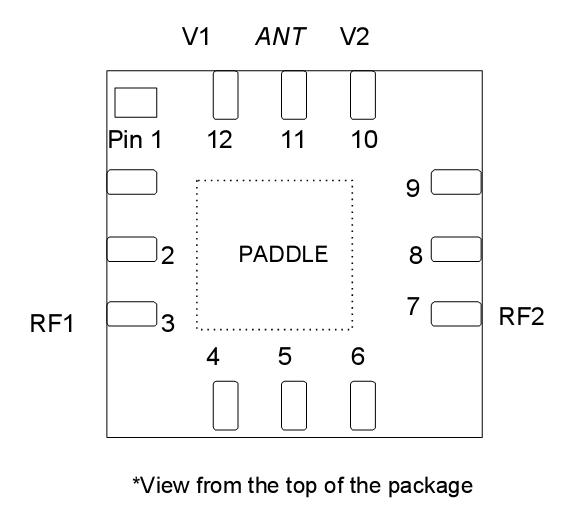

FMS2020QFN Connection Diagram
FMS2020QFN
PDF/DataSheet Download
- Datasheet: FMS2020QFN
- File Size: 186083 KB
- Manufacturer: FILTRONIC [Filtronic Compound Semiconductors]
- Click here to Download
