Part Number: FMS2029
Description: The FMS2029 is a loss, high isolation broadband single pole single throw Gallium Arsenide switch desig...
- Table of contents:
FMS2029
-
Suppliers
DataSheet
General Description
FMS2029 General Description
The FMS2029 is a loss, high isolation broadband single pole single throw Gallium Arsenide switch designed for use in broadband communications, instrumentation and electronic warfare applications. It offers non-reflective properties from both ports. The die is fabricated using the Filtronic FL05 0.5m switch process technology that offers leading edge performance optimised for switch applications.
FMS2029 Maximum Ratings
| Parameter | Symbol | Absolute Maximum |
| Max Input Power | Pin | +38dBm |
| Operating Temp | Toper | -40°C to +100°C |
| Storage Temp | Tstor | -55°C to +150°C |
FMS2029 Features
Available in die form
Both ports Non-Reflective
Low Insertion loss 2.2dB at 20 GHz typical
Very high isolation 50dB at 20 GHz typical
Excellent low control voltage performance
Both ports Non-Reflective
Low Insertion loss 2.2dB at 20 GHz typical
Very high isolation 50dB at 20 GHz typical
Excellent low control voltage performance
FMS2029 Typical Application
Broadband communications
nstrumentation
Electronic warfare (ECM, ESM)
nstrumentation
Electronic warfare (ECM, ESM)

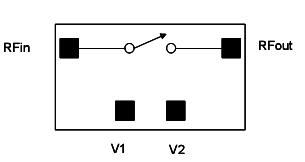

FMS2029 Connection Diagram
FMS2029
