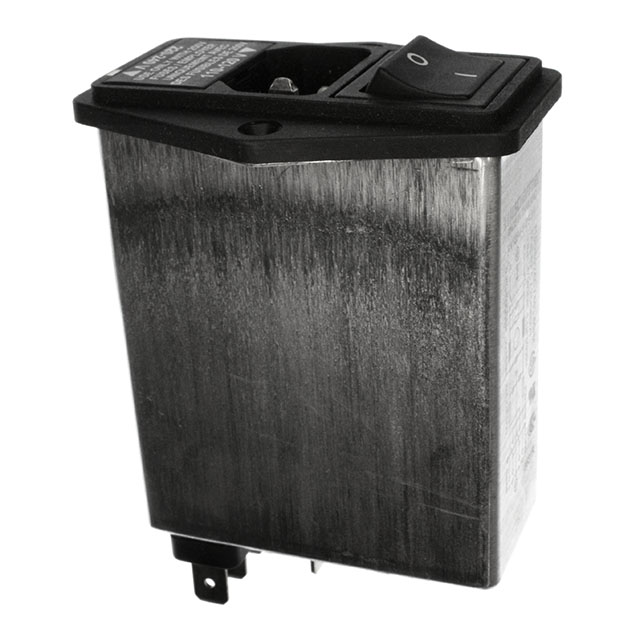

See larger image

SeekIC No. : 001694058 Detail

FN1394-2.5-05-11: AC Power Entry Modules 2.5A MOD PWR INLET IEC FILTER

FN1394-2.5-05-11 Data Sheet

US $ 21.28~23.77 / Piece | Get Latest Price

Part Number:: FN1394-2.5-05-11
Mfg:: Schaffner
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$23.77
$22.08
$21.64
$21.28

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

FN1320001 evaluate
US $3.33 - 3.33 / Piece

OSC 13.288MHZ 3.3V SMD
FN1393-10-05-11 evaluate
US $17.78 - 23.74 / Piece

AC Power Entry Modules FN1393-10/05-11
FN1393-1-05-11 evaluate
US $17.78 - 23.74 / Piece

AC Power Entry Modules 1A MOD PWR INLET IEC FILTER

Product Details

Quick Details

Filtered :	Yes	Filter Type :	Power Entry
Product :	Inlets	Current Rating :	2.5 A
Voltage Rating :	110 V to 120 V, 220 V to 240 V	Mounting Style :	Flange
Termination Style :	Faston Tab	Operating Temperature Range :	- 25 C to + 85 C
Connector Type :	IEC-320 C-14

Description

Contact Plating :
Housing Material :
Filtered : Yes
Product : Inlets
Mounting Style : Flange
Operating Temperature Range : - 25 C to + 85 C
Filter Type : Power Entry
Connector Type : IEC-320 C-14
Current Rating : 2.5 A
Termination Style : Faston Tab
Voltage Rating : 110 V to 120 V, 220 V to 240 V

Parameters:

Technical/Catalog Information	FN1394-2.5-05-11
Vendor	Schaffner EMC Inc
Category	Filters
Type	IEC 320-C14 (Male Pins)
Mounting Type	Panel Mount, Screw Hole
Termination Style	Quick Connect - .250" (6.3mm)
Current	2.5A
Voltage	250V
Features	Fuse Holder, Switches, On/Off, Non-Illuminated, Voltage Selector
Filter Type	General Purpose
Fuse Drawer	Included
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FN1394 2 5 05 11 FN1394250511 817 1065 ND 8171065ND 817-1065
