FOD063L

Series: -
Voltage - Isolation: 3750Vrms
Input Type: DC
Output Type: Open Collector
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Current - Output / Channel: 50mA
Packaging: Tube
Number of Channels: 2, Unidirectional
Current - DC Forward (If): 15mA
Data Rate: 10Mbps
Supplier Device Package: 8-SO
Manufacturer: Fairchild Optoelectronics Group
Propagation Delay High - Low @ If: 75ns @ 7.5mA


Features:

Compact SO8 package (except FOD260L 8-pin DIP)
Very high speed 10 MBit/s
Superior CMR - 50 kV/s at 2,000V peak
Fan-out of 8 over -40°C to +85°C
Logic gate output
Strobable output (single channel devices)
Wired OR-open collector
U.L. recognized (File # E90700) (pending)
UDE approval pending
Data multiplexing
Switching power supplies
Pulse transformer replacement
Computer-peripheral interface


Application

Ground loop elimination
LSTTL to TTL, LSTTL or 5-volt CMOS
Line receiver, data transmission

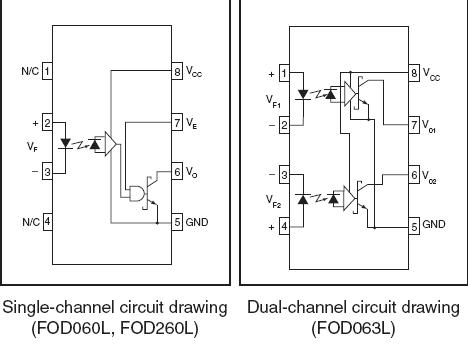

Pinout




Specifications

Parameter		Symbol	Value	Units
Storage Temperature		TSTG	-40 to +125	°C
Operating Temperature		TOPR	-40 to +85	°C
EMITTER DC/Average Forward Input Current (each channel)		TOPR	50	mA
Enable Input Voltage Not to exceed VCC by more than 500 mV	Single Channel	VE	VCC+ 0.5V	V
Reverse Input Voltage (each channel)		VR	5.0	V
Power Dissipation	Single Channel	PI	45	mA
	Dual Channel
DETECTOR Supply Voltage		VCC (1 minute max)	7.0	V
Output Current (each channel)		IO	50	mA
Output Voltage (each channel)		VO	7.0	V
Collector Output Power Dissipation	Single Channel	PO	85	mW
	Dual Channel

Description

These optocouplers consist of an AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate. Single channel FOD063L include a strobable output. This output features an open collector, thereby permitting wired OR outputs. The output FOD063L consists of bipolar transistors in a Bi-CMOS process for reduced power consumption. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5 mA (3 mA for the FODX6XL versions) will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 50 kV/s at 2,000V common mode.
