FOD816

Isolation Voltage : 5000 Vrms
Maximum Operating Temperature : + 100 C
Input Type : AC
Packaging : Bulk
Maximum Forward Diode Voltage : 1.4 V
Maximum Power Dissipation : 200 mW
Package / Case : PDIP-4
Maximum Collector Emitter Saturation Voltage : 1 V
Maximum Collector Emitter Voltage : 35 V
Maximum Collector Current : 80 mA
Minimum Operating Temperature : - 30 C
Current Transfer Ratio : 7500 %


Features:

AC input response
Applicable to Pb-free IR reflow soldering
Compact 4-pin package
High current transfer ratio: 600% minimum
Safety agency approvals pending
High input-output isolation voltage of 5000Vrms


Application

Power supply regulators
Digital logic inputs
Microprocessor inputs

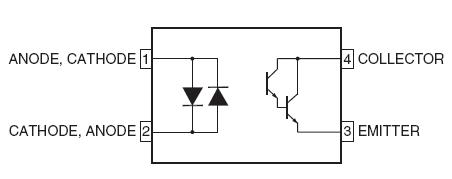

Pinout




Specifications

Parameter	Symbol	Value	Units
TOTAL DEVICE
Storage Temperature	TSTG	-55 to +125	°C
Operating Temperature	TOPR	-30 to +100	°C
Lead Solder Temperature	TSOL	260 for 10 sec	°C
Total Power Dissipation	PTOT	200	mW
INPUT
Forward Current	IF	±50	mA
Power Dissipation	P	70	mW
OUTPUT
Collector-Emitter Voltage	VCEO	35	v
Emitter-Collector Voltage	VCEO	6	v
Collector Current	IC	80	mA
Collector Power Dissipation	PC	150	mW

Description

The FOD816 consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a silicon photodarlington output in a 4-pin dual in-line package.


Parameters:

Technical/Catalog Information	FOD816
Vendor	Fairchild Optoelectronics Group
Category	Isolators
Voltage - Isolation	5000Vrms
Input Type	AC, DC
Output Type	Darlington
Current - Output / Channel	50mA
Voltage - Output	70V
Vce Saturation (Max)	200mV
Current Transfer Ratio (Min)	50% @ 1mA
Mounting Type	Through Hole
Package / Case	4-DIP
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FOD816 FOD816
