FOD817

Isolation Voltage : 5000 Vrms
Maximum Operating Temperature : + 110 C
Minimum Operating Temperature : - 55 C
Maximum Collector Current : 50 mA
Packaging : Bulk
Input Type : DC
Maximum Forward Diode Voltage : 1.4 V
Maximum Power Dissipation : 200 mW
Package / Case : PDIP-4
Maximum Collector Emitter Saturation Voltage : 0.2 V
Current Transfer Ratio : 600 %
Maximum Collector Emitter Voltage : 70 V


Features:

• Applicable to Pb-free IR reflow soldering
• Compact 4-pin package
• Current transfer ratio in selected groups:
FOD817: 50-600%
FOD817A: 80-160%
FOD817B: 130-260%
FOD817C: 200-400%
FOD817D: 300-600%
• C-UL, UL and VDE approved
• High input-output isolation voltage of 5000 Vrms




Application

• Power supply regulators
• Digital logic inputs
• Microprocessor inputs

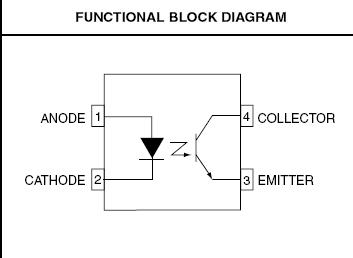

Pinout






Specifications

Parameter	Symbol	Value	Units
TOTAL DEVICE
Storage Temperature	TSTG	-55 to +125	°C
Operating Temperature	TOPR	-30 to +100	°C
Lead Solder Temperature	TSOL	260 for 10 sec	°C
Total Power Dissipation	PD	200	mW
EMITTER Continuous Forward Current	IF	50	mA
Reverse Voltage	VR	6	V
LED Power Dissipation Derate above 25°C	PD	70	mW
OUTPUT		0.93	mW/°C
Collector-Emitter Voltage	VCEO	70	v
Emitter-Collector Voltage	VCEO	6	v
Collector Current	IC	0	mA
Detector Power Dissipation Derate above 25°C	PD	150	mW
		2.0	mW/°C

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
FOD817	Full Production	RoHS Compliant	$0.107	SMDIP-B	4	BOX	TBD
FOD817300	Full Production	RoHS Compliant	$0.107	SMDIP-B	4	BOX	TBD
FOD817300W	Full Production	RoHS Compliant	$0.107	SMDIP-B	4	BOX	TBD
FOD8173S	Full Production	RoHS Compliant	$0.107	SMDIP-B	4	BOX	TBD
FOD8173SD	Full Production	RoHS Compliant	$0.129	SMDIP-B	4	TAPE REEL	TBD
FOD817S	Full Production	RoHS Compliant	$0.107	SMDIP-B	4	BOX	TBD
FOD817SD	Full Production	RoHS Compliant	$0.129	SMDIP-B	4	TAPE REEL	TBD
FOD817W	Not recommended for new designs	RoHS Compliant	N/A	DIP-B	4	BOX	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Description

The FOD814 consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a silicon phototransistor output in a 4-pin dual in-line package. The FOD617/817 Series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 4-pin dual in-line package.

Parameters:

Technical/Catalog Information	FOD817
Vendor	Fairchild Semiconductor
Category	Isolators
Isolation Voltage	5000Vrms
Input Type	DC
Output Type	Transistor
Current - Output/Channel	50mA
Voltage - Output	70V
Vce Saturation (Max)	200mV
Current Transfer Ratio (Min)	50% @ 5mA
Mounting Type	Through Hole
Package / Case	4-DIP
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FOD817 FOD817
