General Description
FS6127 General Description
The FS6127 is a monolithic CMOS clock generator IC designed to minimize cost and component count in digital video/audio systems.
At the core of the FS6127 is circuitry that implements a voltage-controlled crystal oscillator when an external resonator (nominally 13.5MHz) is attached. The VCXO allows device frequencies to be precisely adjusted for use in systems that have frequency matching requirements, such as digital satellite receivers.
A high-resolution phase-locked loop generates the output clock frequency (CLK). The CLK frequency is phase- locked and frequency-locked to the VCXO frequency.
FS6127 Maximum Ratings
|
PARAMETER |
SYMBOL |
MIN. |
MAX. |
UNITS |
| Supply Voltage (VSS = ground) |
VDD |
VSS-0.5 |
7 |
V |
| Input Voltage, dc |
VI |
VSS-0.5 |
VDD+0.5 |
V |
| Output Voltage, dc |
VO |
VSS-0.5 |
VDD+0.5 |
V |
| Input Clamp Current, dc (VI < 0 or VI > VDD) |
IIK |
-50 |
50 |
mA |
| Output Clamp Current, dc (VI < 0 or VI > VDD) |
IOK |
-50 |
50 |
mA |
| Storage Temperature Range (non-condensing) |
TS |
-65 |
150 |
°C |
| Ambient Temperature Range, Under Bias |
TA |
-55 |
125 |
°C |
| Junction Temperature |
TJ |
125 |
°C | |
| Lead Temperature (soldering, 10s) |
260 |
°C | ||
| Input Static Discharge Voltage Protection (MIL-STD 883E, Method 3015.7) |
2 |
kV |
FS6127 Features
• On-chip tunable voltage-controlled crystal oscillator circuitry (VCXO) allows precise system frequency tuning (pull range typically 300ppm)
• VCXO tuning range: 0-3V
• Uses inexpensive fundamental-mode crystals
• Integrated phase-locked loop (PLL) multiplies VCXO frequency to the higher system frequencies needed
• 5V supply voltage (contact factory for 3.3V)
• Small circuit board footprint (8-pin 0.150 SOIC)
• Custom frequency selections available - contact your local AMI Sales Representative for more information

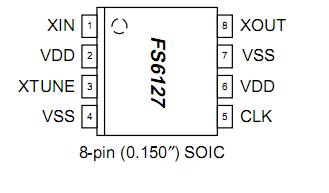

FS6127 Connection Diagram
