FSA3157

Features: Useful in both analog and digital applications Space saving SC70 6-lead surface mount package Ultra small MicroPak™ Pb-Free leadless package Low On Resistance; < 10 on typ @ 3.3V VCC Broad VCC operating range; 1.65V to 5.5V Rail-to-Rail signal handling Power down high impedanc...

product image

FSA3157 Picture
See larger image
SeekIC No. : 004344306 Detail

FSA3157: Features: Useful in both analog and digital applications Space saving SC70 6-lead surface mount package Ultra small MicroPak™ Pb-Free leadless package Low On Resistance; < 10 on typ @ 3.3...

FSA3157 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FSA3157
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Useful in both analog and digital applications
Space saving SC70 6-lead surface mount package
Ultra small MicroPak™ Pb-Free leadless package
Low On Resistance; < 10 on typ @ 3.3V VCC
Broad VCC operating range; 1.65V to 5.5V
Rail-to-Rail signal handling
Power down high impedance control input
Overvoltage tolerance of control input to 7.0V
Break before make enable circuitry
250 MHz, 3dB bandwidth




Pinout

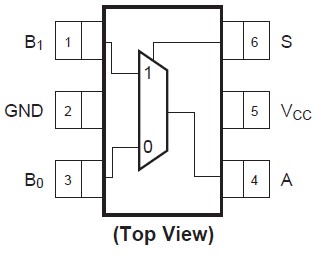

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FSA3157L6X Full Production RoHS Compliant $0.186 MicroPak 6 TAPE REEL Line 1: BB
FSA3157P6X Full Production RoHS Compliant $0.114 SC70 6 TAPE REEL Line 1: &E&Y (Binary Calendar Year Coding)
Line 2: &OB7A&C Line 3: &.&O&V
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FSA3157 is available. Click here for more information .


Symbol
Parameter
Rating
VCC
 Supply Voltage ()
0.5V to +7.0V
VS
 DC Switch Voltage2
0.5V to VCC +0.5V
VIN
 DC Switch Voltage2
0.5V to +7.0V
IIK
 DC Input Diode Current @ (IIK) VIN < 0V
50 mA
IOUT
 DC Output Current
128 mA
ICC/IGND
 DC VCC or Ground Current
±100 mA
TSTG
 Storage Temperature Range
65°C to +150°C
TJ
 Junction Temperature under Bias
150°C
TL
 Junction Lead Temperature (Soldering, 10 seconds)
260°C
PD
 Power Dissipation @ +85°C
180 mW
 ESD, Human Body Model
4000V





Description

The NC7SB3157 / FSA3157 is a high-performance, single- pole / double-throw (SPDT) analog switch or 2:1 multiplexer / de-multiplexer bus switch.

The NC7SB3157 / FSA3157 is fabricated with advanced sub-micron CMOS technology to achieve high-speed enable and disable times and low on resistance. The break-beforemake select circuitry prevents disruption of signals on the B Port due to both switches temporarily being enabled during select pin switching. The NC7SB3157 / FSA3157 is specified to operate over the 1.65 to 5.5V VCC operating range. The control input tolerates voltages up to 5.5V, independent of the VCC operating range.
