FSBB20CH60

IGBT Modules HIGH_POWER

product image

FSBB20CH60 Picture
SeekIC No. : 00141693 Detail

FSBB20CH60: IGBT Modules HIGH_POWER

floor Price/Ceiling Price

US $ 10.87~13.4 / Piece | Get Latest Price
Part Number:
FSBB20CH60
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~36
  • 36~100
  • 100~250
  • 250~500
  • Unit Price
  • $13.4
  • $12.44
  • $11.42
  • $10.87
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2021/7/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Collector- Emitter Voltage VCEO Max : 600 V Collector-Emitter Saturation Voltage : 2.3 V
Continuous Collector Current at 25 C : 20 A Gate-Emitter Leakage Current : 61 W
Power Dissipation : 61 W Package / Case : SPM27-CA
Packaging : Tube

Description

Product :
Configuration :
Maximum Operating Temperature :
Collector- Emitter Voltage VCEO Max : 600 V
Packaging : Tube
Continuous Collector Current at 25 C : 20 A
Collector-Emitter Saturation Voltage : 2.3 V
Power Dissipation : 61 W
Package / Case : SPM27-CA
Gate-Emitter Leakage Current : 61 W


Features:

UL Certified No.E209204(SPM27-CA package)
Very low thermal resistance due to using DBC
600V-20A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Isolation rating of 2500Vrms/min.





Application

AC 100V ~ 253V three-phase inverter drive for small power ac motor drives
Home appliances applications like air conditioner and wash-ing machine.





Pinout

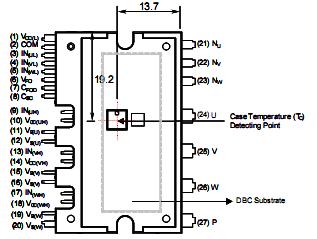

  Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FSBB20CH60 Full Production RoHS Compliant $19.30 SPM27-CA 27 RAIL TBD Line 1: $Y (Fairchild logo)
Line 2: FSBB20CH60 Line 3: &H&E&E&E&E&3 Line 4: AL&H&3
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FSBB20CH60 is available. Click here for more information .


Symbol Parameter Conditions Rating Unit
VPN
Supply Voltage Applied between P- NU ,NV ,NW
450 V
VPN(Surge)
Supply Voltage (Surge) Applied between P- NU ,NV ,NW
500 V
VCES

Collector-emitter Voltage
600 V
±IC Each IGBT Collector Current TC=25 20 A
±ICP Each IGBT Collector Current (Peak) TC=25 Under 1ms Pulse Widt 40 A
PC
Collector Dissipation TC=25 per One Chip 61 W
TJ
Operating Junction Temperature
(Note 1) -20 ~ 125





Description

FSBB20CH60 is an advanced smart power module (SPMTM) that Fairchildhas newly developed and designed to provide very compactand high performance ac motor drives mainly targeting lowpowerinverter-driven application like air conditioner and washingmachine. FSBB20CH60 combines optimized circuit protection and drivematched to low-loss IGBTs. System reliability is furtherenhanced by the integrated under-voltage lock-out and shortcircuitprotection. The high speed built-in HVIC of FSBB20CH60 provides optocoupler-less single-supply IGBT gate driving capability that furtherreduce the overall size of the inverter system design. Eachphase current of inverter can be monitored separately due tothe divided negative dc terminals.






Parameters:

Technical/Catalog InformationFSBB20CH60
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
ApplicationsAC Motor Driver, 3 Phase
Number of Outputs1
Voltage - Supply13.5 V ~ 16.5 V
Voltage - Load300 V ~ 400 V
Current - Output20A
Operating Temperature-20°C ~ 100°C
Package / CaseSPM27CA
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FSBB20CH60
FSBB20CH60
