FSBM15SM60A

Configuration :
Maximum Gate Emitter Voltage :
Maximum Operating Temperature :
Collector- Emitter Voltage VCEO Max : 600 V
Packaging : Tube
Collector-Emitter Saturation Voltage : 2.3 V
Gate-Emitter Leakage Current : +/- 250 nA
Continuous Collector Current at 25 C : 15 A
Package / Case : SPM32-AA
Power Dissipation : 50 W


Features:

UL Certified No. E209204
600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Typical switching frequency of 5kHz
Inverter power rating of 0.8kW / 100~253 Vac
Isolation rating of 2500Vrms/min.
Very low leakage current due to using ceramic substrate
Adjustable current protection level by varying series resistor value with sense-IGBTs


Application

AC 100V ~ 253V  3-phase inverter drive for small power(0.8kW) ac motor drives
Home appliances applications requiring medium switching frequency operation like air conditioners drive system
Application ratings:
 - Power : 0.8kW / 100~253 Vac
 - Switching frequency : Typical 5kHz (PWM Control)
 - 100% load current : 5.0A (Irms)
 - 150% load current : 7.5A (Irms) for 1 minute

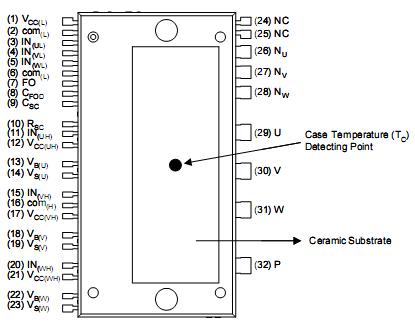

Pinout




Specifications

Item	Symbol	Condition	Rating	Unit
Supply Voltage	VPN	Applied between P- NU,NV,NW	450	V
Supply Voltage (Surge)	VPN(Surge)	Applied between P- NU,NV,NW	500	V
Collector-Emitter Voltage	VCES		600	V
Each IGBT Collector Current	±IC	T = 25	15	A
Each IGBT Collector Current	±IC	T = 100	12	A
Each IGBT Collector Current (Peak)	±ICP	T = 25 Instantaneous Value (Pulse)	30	A
Collector Dissipation	PC	T = 25 per One ChiP	50	W
Operating Junction Temperature	TJ	(Note 1)	-20 ~ 125

Description

  FSBM15SM60A is an advanced smart power module(SPM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting medium speed low-power inverter-driven application like air conditioners. FSBM15SM60A combines optimized circuit protection and drive matched to low-loss IGBTs. Highly effective short-circuit current detection/protection is realized through the use of advanced current sensing IGBT chips that allow continuous monitoring of the IGBTs current. System reliability is further enhanced by the integrated under-voltage lock-out protection. The high speed built-in HVIC provides opto-coupler-less IGBT gate driving capability that further reduce the overall size of the inverter system design. In addition the incorporated HVIC facilitates the use of single-supply drive topology enabling the FSBM15SM60A to be driven by only one drive supply voltage without negative bias. Inverter current sensing application can be achieved due to the divided negative dc terminals.


Parameters:

Technical/Catalog Information	FSBM15SM60A
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver, 3 Phase
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 400 V
Current - Output	15A
Operating Temperature	-20°C ~ 100°C
Package / Case	SPM32AA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSBM15SM60A FSBM15SM60A
