Part Number: FSBS10CH60



MFG: FAIRCHILD





Description: It is an advanced smart power module (SPMTM) that Fairchild has newly developed and designed to...


Urgent Purchase

FSBS10CH60 General Description


   It is an advanced smart power module (SPMTM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like air conditioner and wash-ing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC provides opto-coupler-less single-supply IGBT gate driving capability that fur-ther reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals.

FSBS10CH60 Maximum Ratings

Symbol Parameter Conditions Rating Unit
VPN
 Supply Voltage Applied between P- NU ,NV ,NW
 450 V
VPN(Surge)
 Supply Voltage (Surge) Applied between P- NU ,NV ,NW
 500 V
VCES
Collector-emitter Voltage		   600 V
±IC Each IGBT Collector Current TC=25 10 A
±ICP Each IGBT Collector Current (Peak) TC=25 Under 1ms Pulse Widt 20 A
PC
 Collector Dissipation TC=25 per One Chip 27 W
TJ
Operating Junction Temperature		 (Note 1) -20 ~125

FSBS10CH60 Features

UL Certified No.E209204(SPM27-BA package)
600V-10A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Isolation rating of 2500Vrms/min.
Very low leakage current due to using ceramic substrate

FSBS10CH60 Typical Application

AC 100V ~ 253V  three-phase inverter drive for small power ac motor drives
Home appliances applications like air conditioner and wash-ing machine

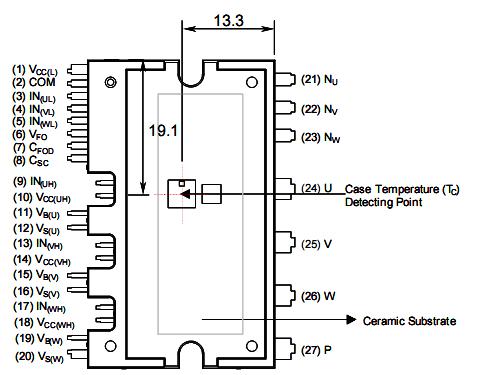

FSBS10CH60 Connection Diagram
