FSD1000

Power Switch ICs - Power Distribution FPS for PC SMPS

product image

FSD1000 Picture
See larger image
SeekIC No. : 00631075 Detail

FSD1000: Power Switch ICs - Power Distribution FPS for PC SMPS

FSD1000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FSD1000
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Maximum Operating Temperature : + 85 C

Description

Number of Outputs :
On Resistance (Max) :
On Time (Max) :
Off Time (Max) :
Operating Supply Voltage :
Supply Current (Max) :
Mounting Style :
Package / Case :
Maximum Operating Temperature : + 85 C


Features:

Current Mode Control for Main Power
Voltage Mode Control for Auxiliary Power
Synchronized switching of Main and Auxiliary Power (70kHz)
Internal Start-up Circuit
Internal Soft Start for Auxiliary Power
User Defined Soft Start for Main Power
Pulse by Pulse Current Limiting
Over Load Protection (Main : Latch Mode, Aux : Auto Restart Mode)
Internal Over Temperature Protection
Vcc Under Voltage Lockout
Line Under voltage/ Over Voltage Lockout
Burst Mode Operation for auxiliary power to reduce the Power Consumption in the Standby Mode
Internal High Voltage SenseFET for auxiliary power


Application

SMPS for PC power
LCD TV Power Supply


Pinout

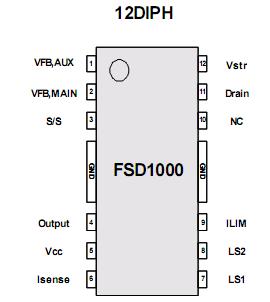

Connection Diagram


Specifications

             Parameter Symbol Value Unit
Maximum Drain Voltage VSTR,MAX 700 V

Continuous Drain Current (TC=25)
 ID 2 ADC
Maximum Supply Voltage VCC ,MAX 20 V
Input Voltage Range VFBMAIN
VFB,/  ,AUX		 -0.3 to VSD
 V
Operating Ambient Temperature TA -25 to +85
Storage Temperature Range TSTG
 -55 to +150



Description

  FSD1000 is a Fairchild Power Switch (FPS) that is specially designed for SMPS of personal computer. This device is a high voltage power SenseFET combined with two PWM controllers in a single monolithic device; One is for main power and the other is for auxiliary power. The PWM controllers feature integrated oscillator, under voltage lockout, optimized gate driver and temperature compensated precise current sources for the loop compensation. FSD1000 also includes various fault protection circuits such as line under/over voltage lock out, over voltage protection, over load protection and over temperature protection. Compared with discrete MOSFET and PWM controller solution, FSD1000 can reduce total cost, component count, size and weight simultaneously increasing efficiency, productivity and system reliability
