FSDM101

Series: -
Output Isolation: Isolated
Package / Case: 8-DIP (0.300", 7.62mm)
Voltage - Output: 650V
Packaging: -
Supplier Device Package: 8-DIP
Manufacturer: Fairchild Semiconductor
Frequency Range: 61 ~ 73kHz
Voltage - Input: 7 V ~ 20 V
Operating Temperature: 25°C ~ 150°C
Power (Watts): 17W


Features:

• Internal Avalanche Rugged Sense FET
• Precision Fixed Operating Frequency (67kHz)
• Internal Start-up Switch and Soft Start
• Under Voltage Lock Out (UVLO) with Hysteresis
• Pulse by Pulse Current Limit
• Over Load Protection (OLP)
• Over Voltage Protection (OVP)
• Internal Thermal Shutdown Function (TSD)
• Secondary Side Regulation
• Auto-Restart Mode


Application

• Charger & Adaptor for Mobile Phone, PDA & MP3
• Auxiliary Power for White Goods, PC, C-TV & Monitor
• SMPS for VCR, SVR, STB, DVD, and DVCD
• Adaptor for Camcorder

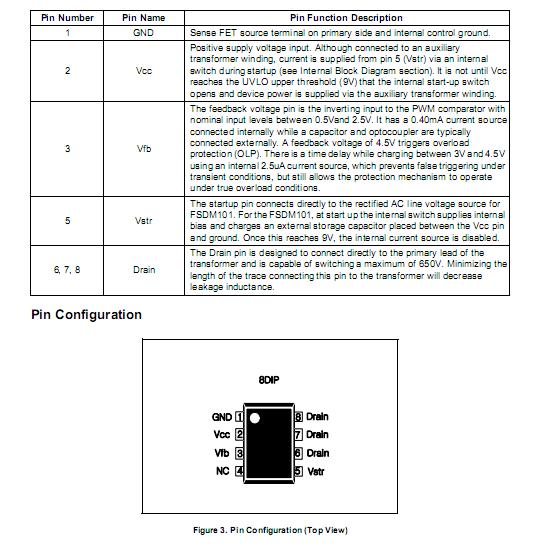

Pinout




Specifications

Parameter	Symbol	Value	Unit
Maximum Vstr Pin Voltage	VDSS	650	V
Maximum Drain Pin Voltage	VSTR	650	V
Drain Current Pulsed (1)	IDM	1.5	ADC
Continuous Drain Current (Tc=100°C)	ID	0.5	ADC
Continuous Drain Current*(TDL=25°C)	ID*	0.32	ADC
Single Pulsed Avalanche Energy (2)	EAS	10	mJ
Maximum Supply Voltage	VCC	20	V
Input Voltage Range	VFB	−0.3 to	V
Total Power Dissipation (Tc=25°C) (2)	PD	-	W
Operating Junction Temperature	TJ	Internally limited	°C
Operating Ambient Temperature	TA	-25 to +85	°C
Storage Temperature Range	TSTG	-55 to +150	°C

Description

The FSDM101 is an integrated Pulse Width Modulator(PWM) and Sense FET specially designed for high performance offline Switch Mode Power Supplies (SMPS) with minimal external components. FSDM101 is a monolithic high voltage power switching regulator which combines a VDMOS Sense FET with a voltage mode PWM control block. The integrated PWM controller features include: a fixed oscillator, Under Voltage Lock Out (UVLO) protection, Leading Edge Blanking (LEB), optimized gate turn-on/ turn-off driver, thermal shut down protection (TSD), temper-ature compensated precision current sources for loop compensation and fault protection circuitry. When compared to a discrete MOSFET and controller or RCC switching converter solution, the FSDM101 reduces total component count, design size, weight and at the same time increases efficiency, productivity, and system reliability. This device is a basic platform well suited for cost effective designs of flyback converters.

Parameters:

Technical/Catalog Information	FSDM101
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Packaging	-
Package / Case	8-DIP
Power (Watts)	17W
Voltage - Input	8 ~ 20 V
Voltage - Output	650V
Frequency Range	61 ~ 73kHz
Operating Temperature	25°C ~ 85°C
Output Isolation	Isolated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSDM101 FSDM101
