Features:

*1.65 Gbps Throughput
*-25dB non-adjacent channel crosstalk at 825MHz
*Isolation ground between channels
*Fast turn on/off time
*Low power consumption (1A max)
*Control input: TTL compatible
*Available in 48-lead QVSOP package


Application

 UXGA and 1080p DVI and HDMI video source selection


Pinout

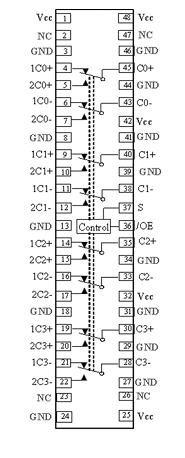

Connection Diagram


Specifications

Supple Voltage (VCC)                                 -0.5V to+ 4.6V
DC Switch Voltage (VS )                      -0.5V to VCC + 0.05
DC Input Voltage (VIN) (Note 2)                 -0.5V to +4.6V
DC Input Diode Current (IIK)                                  -50 mA
DC Output (IOUT ) Sink Current                             128 mA
Storage Temperature Range (TSTG)          -65 to +150
ESD
Human Body Model                                                      4kV


Description

The FSHDMI04 is a wide bandwidth switch for routing HDMI Link Data and Clock signals. This device supports data rates up to 1.65Gbps per channel for UXGA resolution. FSHDMI04 can also be used to switch other LVDS or TMDS based DVI digital video signals as well as 1000BaseT Gigabit Ethernet. Possible applications include LCD TV, DVD, SetTop Box, and notebook computer and other designs with multiple digital video interfaces. The FSHDMI04 switch allows the passage of HDMI link signals with low non-adjacent channel crosstalk and superior OFFIsolation. This performance is critical to minimize ghost images between active video sources in video applications. The wide bandwidth of this switch allows the high speed differential signal to pass through the switch with minimal additive skew and phase jitter.
