Part Number: FST16210



MFG: FAIRCHILD

Package Cooled: QFP

D/C: 01+

Description: The Fairchild Switch FST16210 provides 20-Bits of highspeed CMOS TTL-compatible bus switching. The low...


Urgent Purchase

FST16210 General Description


The Fairchild Switch FST16210 provides 20-Bits of highspeed CMOS TTL-compatible bus switching. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.

The device is organized as a 10-bit or 20-Bit bus switch.When OE1 is LOW, the switch is ON and Port 1A is connected to Port 1B. When OE2 is LOW, Port 2A is connected to Port 2B.

FST16210 Maximum Ratings

Supply Voltage (VCC) ...............................................0.5V to +7.0V
DC Switch Voltage (VS) ..........................................−0.5V to +7.0V
DC Input Voltage (VIN) (Note 2)............................. −0.5V to +7.0V
DC Input Diode Current (lIK) VIN < 0V ................................−50 mA
DC Output (IOUT) Current ..................................................128 mA
DC VCC/GND Current (ICC/IGND) ......................................±100 mA
Storage Temperature Range (TSTG)................ −65°C to +150 °C

FST16210 Features

• 4Ω switch connection between two ports.
• Minimal propagation delay through the switch.
• Low lCC.
• Zero bounce in flow-through mode.
• Control inputs compatible with TTL level.

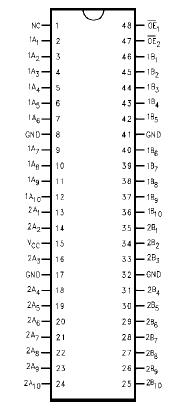

FST16210 Connection Diagram

FST16210 Connection Diagram

FST16210 datasheet

FST16210
PDF/DataSheet Download

  • Datasheet: FST16210
  • File Size: 113088 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download
