FST16244

Features:

• 4Ω switch connection between two ports.
• Minimal propagation delay through the switch.
• Low l_CC.
• Zero bounce in flow-through mode.
• Control inputs compatible with TTL level.

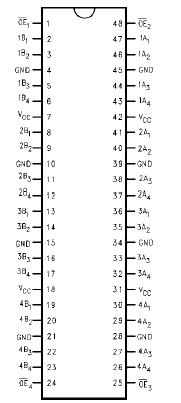

Pinout




Specifications

Supply Voltage (V_CC) ...............................................0.5V to +7.0V
DC Switch Voltage (V_S) (Note 2) ............................−0.5V to +7.0V
DC Input Voltage (V_IN) (Note 3)............................. −0.5V to +7.0V
DC Input Diode Current (l_IK) V_IN < 0V ................................−50 mA
DC Output (I_OUT) Current ..................................................128 mA
DC V_CC/GND Current (I_CC/I_GND) ......................................±100 mA
Storage Temperature Range (T_STG)................ −65°C to +150 °C


Description

The Fairchild Switch FST16244 provides 16-bits of highspeed CMOS TTL-compatible bus switching. The low On Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.

The FST16244 is organized as a 16-bit switch. There are four 4-bit switches with separate output enable inputs. When OE is LOW, the switch in ON and Port A is connected to Port B. When OE is HIGH, the switch OFF and a high impedance state exists between the A and B Ports.
