Product Details

Description

Features:

•4Ω switch connection between two ports
•Minimal propagation delay through the switch
•Low l_CC
•Zero bounce in flow-through mode
•Control inputs compatible with TTL level

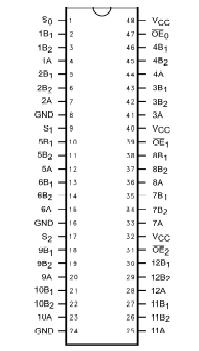

Pinout

Connection Diagram

Specifications

Supply Voltage (V_CC) .............................................−0.5V to +7.0V
DC Switch Voltage (V_S) ..........................................−0.5V to +7.0V
DC Input Voltage (V_IN)(Note 2) ..............................−0.5V to +7.0V
DC Input Diode Current (l_IK) V_IN < 0V ................................−50 mA
DC Output (I_OUT) Sink Current ...........................................128 mA
DC V_CC/GND Current (I_CC/I_GND) ...................................+/− 100 mA
Storage Temperature Range (T_STG) ................−65°C to +150 °C

Description

The Fairchild Switch FST33X257 is a 24:12 high-speed CMOS TTL-compatible multiplexer/demultiplexer bus switch. The low On Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.

When OE_x is LOW, the select pin connects the A Port to the selected B Port output. When OE_xis HIGH, the FST33X257 is OPEN and a high-impedance state exists between the two ports.
