FSTU16211

Features: ` Undershoot hardened to −2V (A and B Ports)` Slower output enable times to prevent signal disruption` 4 switch connection between two ports` Minimal propagation delay through the switch` Low lCC` Zero bounce in flow-through mode` Control inputs compatible with TTL level` See Appli...

product image

FSTU16211 Picture
See larger image
SeekIC No. : 004344873 Detail

FSTU16211: Features: ` Undershoot hardened to −2V (A and B Ports)` Slower output enable times to prevent signal disruption` 4 switch connection between two ports` Minimal propagation delay through the sw...

FSTU16211 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FSTU16211
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Undershoot hardened to −2V (A and B Ports)
` Slower output enable times to prevent signal disruption
` 4 switch connection between two ports
` Minimal propagation delay through the switch
` Low lCC
` Zero bounce in flow-through mode
` Control inputs compatible with TTL level
` See Applications Note AN-5008 for details


Pinout

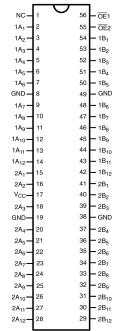

Connection Diagram


Specifications

Supply Voltage (VCC)  ................ −0.5V to +7.0V
DC Switch Voltage (VS) (Note 2) ...........−0.5V to +7.0V
DC Input Control Pin Voltage (VIN) (Note 3) .....−0.5V to +7.0V
DC Input Diode Current (lIK) VIN < 0V  ........... −50 mA
DC Output Current (IOUT) ..................128 mA
DC VCC/GND Current (ICC/IGND) ............+/− 100 mA
Storage Temperature Range (TSTG) ........−65 to +150


Description

The Fairchild Switch FSTU16211 provides 24-bits of highspeed CMOS TTL-compatible bus switching. The low On Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.

The FSTU16211 is organized as a 12-bit or 24-bit bus switch. When OE1 is LOW, the switch is ON and Port 1A is connected to Port 1B. When OE2 is LOW, Port 2A is connected to Port 2B. The A and B Ports of FSTU16211 are protected against undershoot to support an extended range to 2.0V below ground.Fairchild's integrated Undershoot Hardened Circuit (UHCTM) senses undershoot at the I/O and responds by preventing voltage differentials from developing and turning the switch on.
