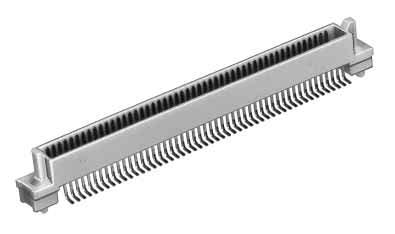

FX6-040P-0.8SV

1. Stacking Height 5 to 9mm
The board to board stacking height can be set at every millimeter between 5 and 9mm.

2. Effective Contact Length 1.7mm
Despite the low profile type connector, the connector has the 1.7mm long effective contact length and provides a margin sufficient to contact.

3. Mating Guide
The self-alignment for mating action exhibits a high guide level at ±1mm, and makes the mating process easier by providing the guide rib.

4. Automatic Mounting
The standard packaging specification specifies the stick package, considering the automatic mount, while the emboss package can also correspond to the connector with less than 80 contacts. (However, the product is limited to 80 contacts.)

5. SMT Coplanarity
The lead coplanarity on the SMT soldered area is maintained with the high accuracy of less than 0.1mm.
