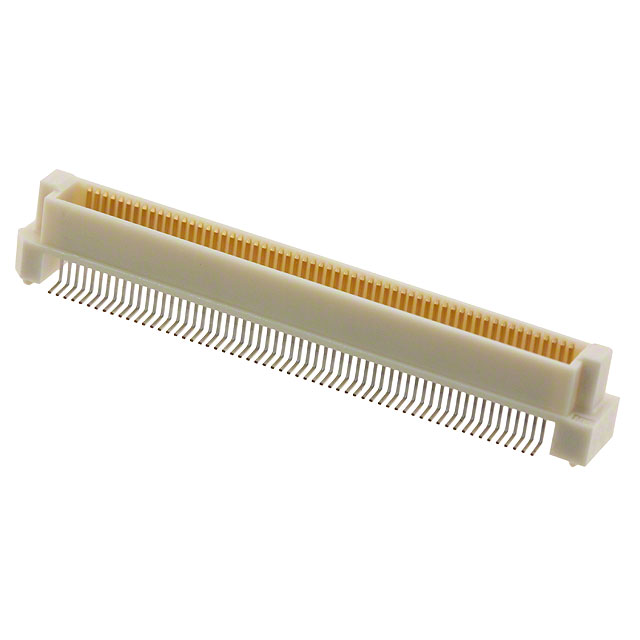

FX8C

1. Stacking Height 3mm to 16mm available
The board to board stacking height can correspond to 3mm~16mm.

2. SMT Coplanarity
The coplanarity of the SMT solder area lead is maintained at the high accuracy of less than 0.1mm.

3. Mating Guide
The very small and guide rib is provided, and secures ±0.6mm self-alignment, considering the mating operativity into accounts.

4. Mis-insertion Prevention
The boss prevents mis-insertion in the board to cause due to the boss position and boss diameter.

5. Two-piece Connection Product
In order to enhance the mating reliability for the fine pitch connector using two-pieces, the two-pieces of connectors are combined by our unique method, and can secure the mount position accuracy. In such a new concept, the two-piece connected product is prepared at every number of contacts (The standard mating pitch for the two-piece interconnected product in two rows is 11mm.)
