Features:

One-way (unidirectional) translation between any 2 levels from 1.1V to 3.6V
Fully configurable, inputs and outputs track respective VCC levels
Non-preferential power-up sequencing; either VCC may be powered-up first
Outputs remain in 3-STATE until active VCC level is reached
Outputs switch to 3-STATE if either VCC is at GND
Power-off protection
Control input (OE) level is referenced to VCCI voltage
Packaged in 14-terminal DQFN (2.5mm x 3.0mm) package
ESD protection exceeds:
• 4kV HBM ESD (per JESD22-A114 & Mil Std 883e 3015.7)
• 8kV HBM I/O to GND ESD (per JESD22-A114 & Mil Std 883e 3015.7)
• 1kV CDM ESD (per ESD STM 5.3)
• 200V MM ESD (per JESD22-A115 & ESD STM5.2)


Pinout

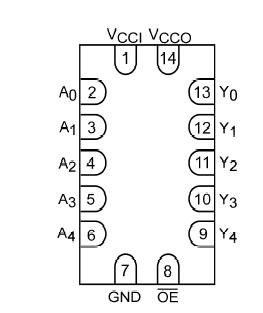

Connection Diagram


Specifications

VCCI ..................................................................−0.5V to +4.6V
VCCO .................................................................−0.5V to +4.6V
DC Input Voltage (VI) ........................................−0.5V to +4.6V
Output Voltage (VO) (Note 2)
Outputs 3-STATE ...............................................−0.5V to +4.6V
Outputs Active .......................................−0.5V to VCCO + 0.5V
DC Input Diode Current (IIK) VI < 0V........................... −50 mA
DC Output Diode Current (IOK)
VO < 0V....................................................................... −50 mA
VO > VCC .....................................................................+50 mA
DC Output Source/Sink Current
(IOH/IOL) ......................................................−50 mA / +50 mA
DC VCC or Ground Current per
Supply Pin (ICC or GND) ............................................±100 mA
Storage Temperature Range (TSTG) ..........−65°C to +150°C


Description

The FXL5T244 is a configurable dual-voltage-supply translator designed for one-way (unidirectional) voltage translation of signals between two voltage levels. The FXL5T244 allows translation between voltages as high as 3.6V to as low as 1.1V. A Inputs and the OE Control Pin track the VCCI level, and Y Outputs track the VCCO level. Both inputs and outputs are designed to accept supply voltage levels from 1.1V to 3.6V. This allows for unidirectional voltage translation over a variety of voltage levels: 1.2V, 1.5V, 1.8V, 2.5V,and 3.3V.

The FXL5T244 remains in 3-STATE until both VCCs reach active levels allowing either VCC to be powered-up first.The device also contains power down control circuits that place the device in 3-STATE if either VCC is removed. The OE input, when HIGH, disables the outputs by placing them in 3-STATE condition.
